K16 Battery Energy Control Module X3 (HP6)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

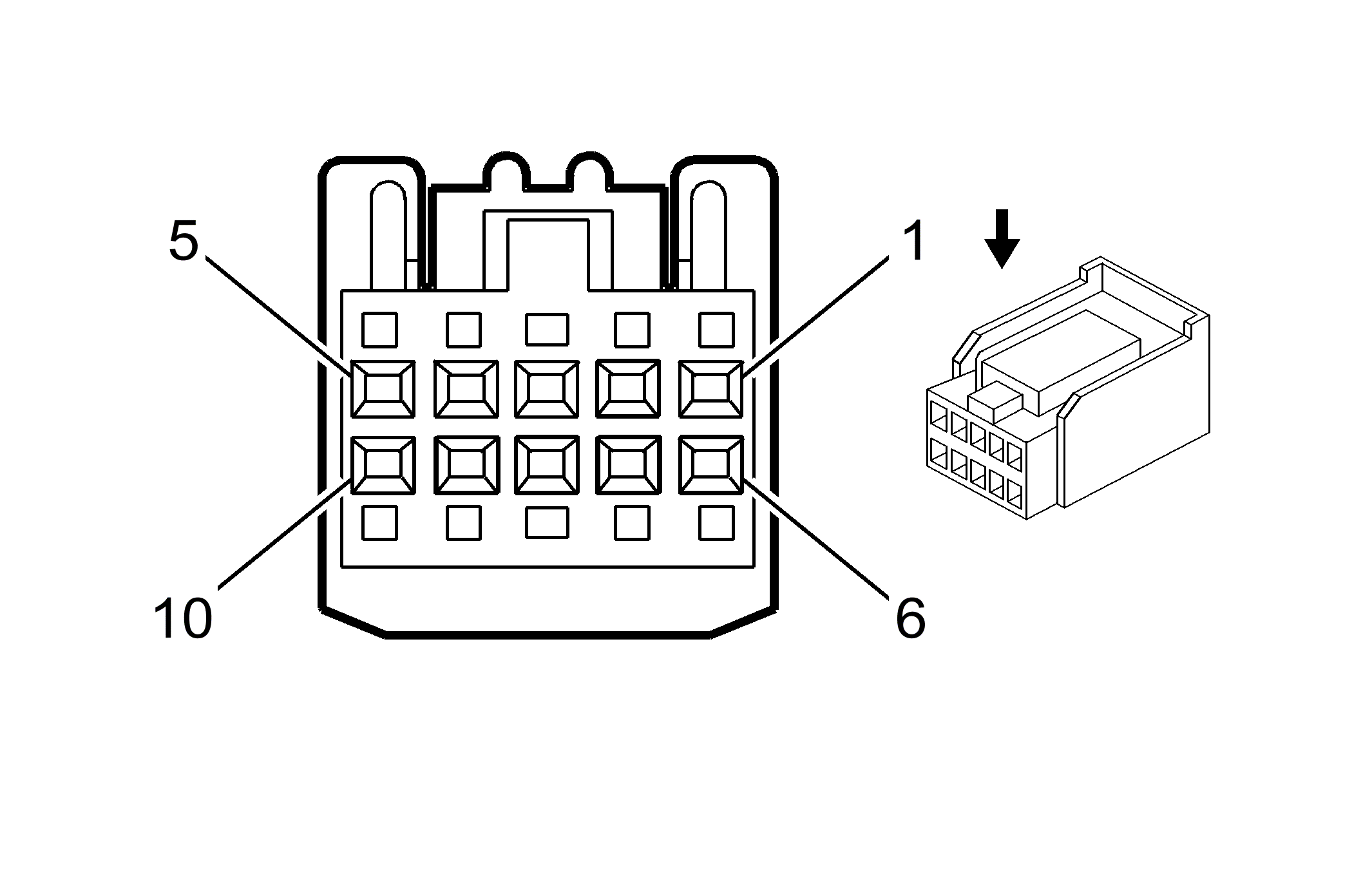

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Service by Harness - See Part Catalog | Pending | Pending | Not Available | Not Available | Not Available | Not Available |
K16 Battery Energy Control Module X3 (HP6)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE | 5411 | Battery Module Temperature Signal (7) | I | - |
| 2 | 0.35 | GN/GY | 5407 | Battery Module Temperature Signal (3) | I | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | GN/BN | 5410 | Battery Module Temperature Signal (6) | I | - |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.35 | BK/GY | 5597 | Inlet Air Temperature Sensor Low Reference | I | - |
| 7 | 0.35 | BK/GY | 5597 | Inlet Air Temperature Sensor Low Reference | I | - |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.35 | BK/GY | 5597 | Inlet Air Temperature Sensor Low Reference | I | - |
| 10 | - | - | - | Not Occupied | - | - |
