K40 Seat Memory Control Module X2 A45/CZ2
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

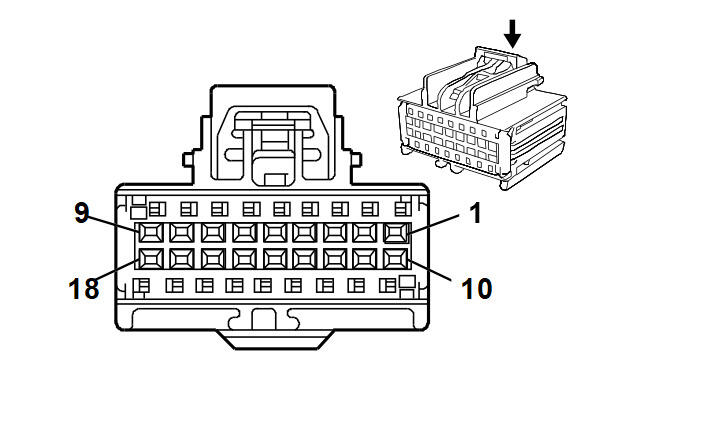

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Service by Connector Assembly - 89047360 | J-35616-64B (L-BU) | Not Available |
K40 Seat Memory Control Module X2 A45/CZ2
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE/BN | 1522 | Power Seat Horizontal Forward Switch Signal | I | - |
| 2-3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | D-BU/D-GN | 614 | Memory Seat Switch Set Signal | I | - |
| 5-6 | - | - | - | Not Occupied | - | - |
| 7 | 0.5 | WH/GY | 2434 | Passenger Heated Seat NTC Signal | I | KA!, or KU3 |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.5 | L-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
| 10 | - | - | - | Not Occupied | - | - |
| 11 | 0.35 | GY/D-GN | 1523 | Power Seat Horizontal Rearward Switch Signal | I | - |
| 12-13 | - | - | - | Not Occupied | - | - |
| 14 | 0.35 | WH | 615 | Memory Seat Switch Signal (1) | I | - |
| 15 | - | - | - | Not Occupied | - | - |
| 16 | 0.5 | YE/GY | 2079 | Driver Heated Seat NTC Signal | I | KA1 or KU3 |
| 17 | - | - | - | Not Occupied | - | - |
| 18 | 0.5 | L-GN | 5060 | Low Speed GMLAN Serial Data | I | - |
