K40 Seat Memory Control Module X4 A45/CZ2
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575577 | J-35616-35 (VT) | J-38125-553 |

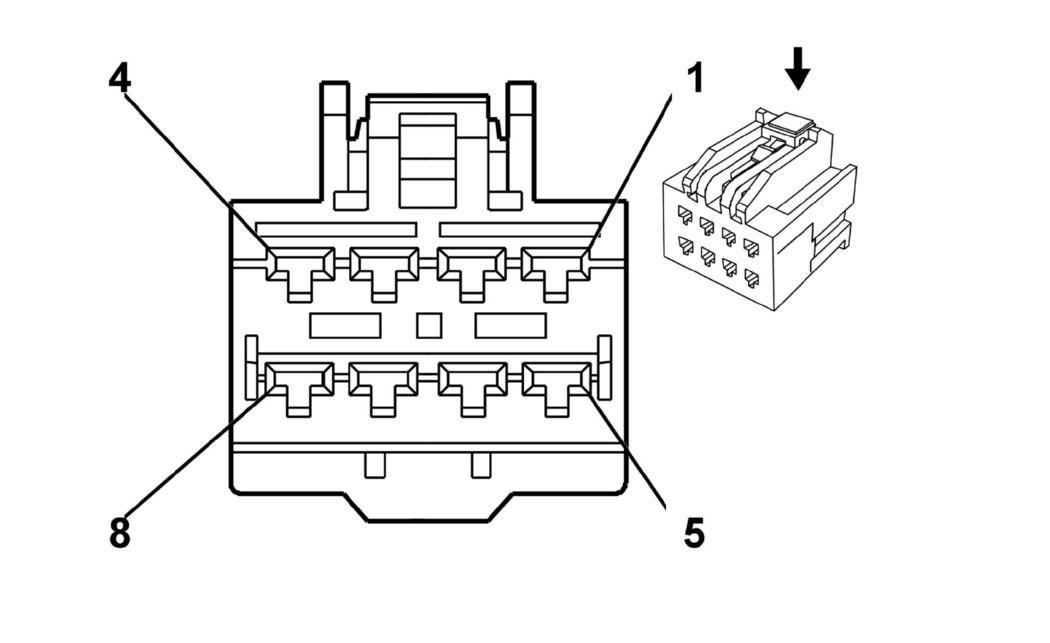

K40 Seat Memory Control Module X4 A45/CZ2
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1 | RD/D-GN | 240 | Battery Positive Voltage | I | - |
| 2 | 0.35 | BK/BU | 5978 | Memory Switch Low Reference | I | - |
| 3 | 2.5 | BK | 250 | Ground | I | - |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | 2.5 | RD/D-GN | 240 | Battery Positive Voltage | I | - |
| 6 | 1 | BK | 150 | Ground | I | - |
| 7 | 1.5 | L-GN/BN | 286 | Driver Power Seat Front Vertical Motor Up Control | I | - |
| 8 | 1.5 | D-BU/VT | 287 | Driver Power Seat Front Vertical Motor Down Control | I | - |
