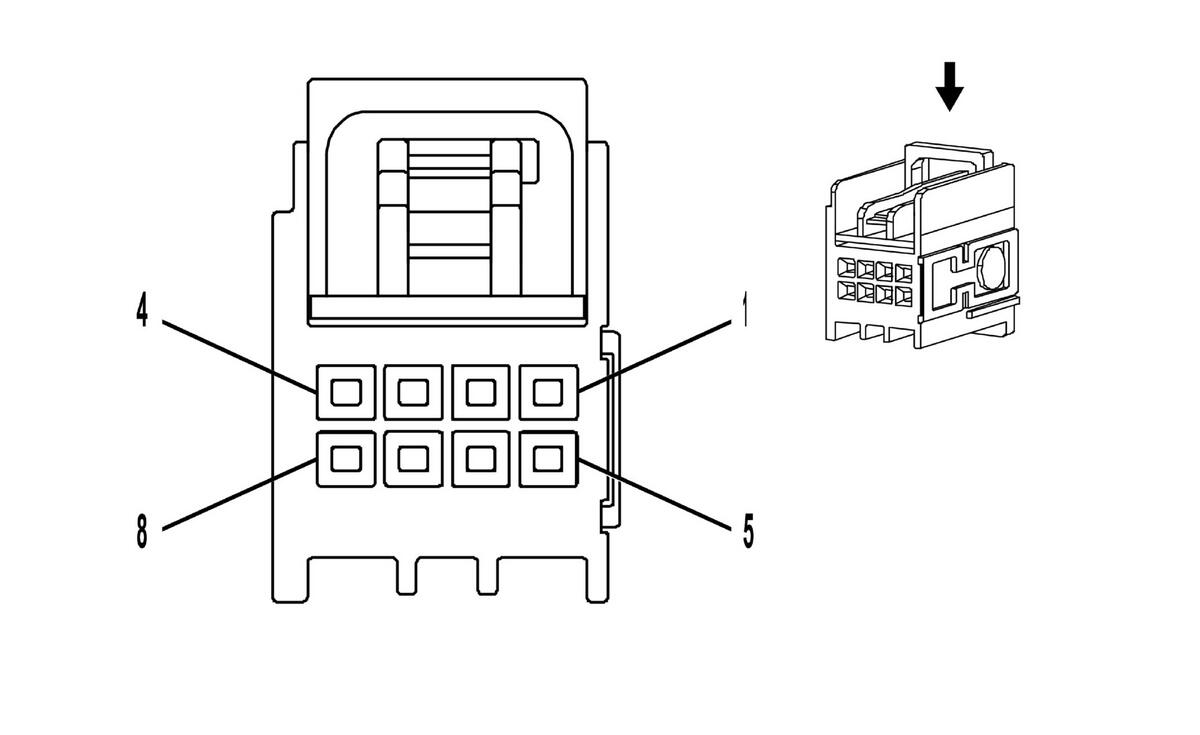

P17 Info Display Module (UDK/UDN)
WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575784 | J-35616-64B (L-BU) | J-38125-12A |
| II | 13235933 | - | - |
P17 Info Display Module (UDK/UDN)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.75 | RD/GN | 3140 | Battery Positive Voltage | I | - |
| 2 | 0.35 | GY | 967 | Reset Signal | II | - |
| 3 | 0.35 | GY | 968 | Serial Data Enable | II | - |
| 4 | 0.75 | GY | 937 | Linear Interconnect Network Bus 10 | I | - |
| 5 | 0.5 | BK | 1750 | Ground | I | - |
| 6 | 0.35 | BARE | 7460 | Integrated Center Stack Serial Data Shield | II | - |
| 7 | 0.35 | VT | 7458 | Center Integrated Center Stack Serial Data High | II | - |
| 8 | 0.35 | YE | 7459 | Integrated Center Stack Serial Data Low | II | - |
