Rear Vision Camera (UVC with CZ2)

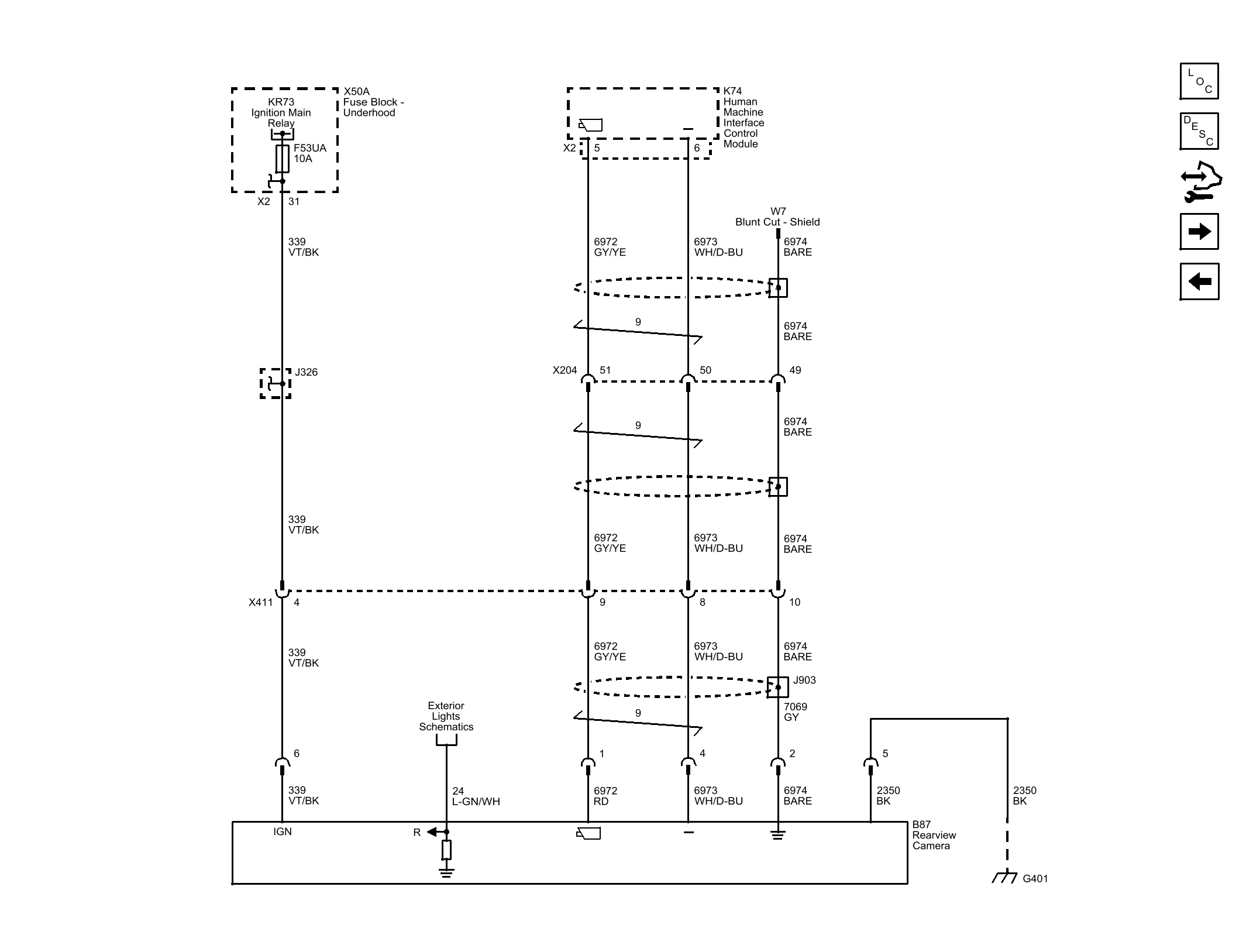

Fig 1: Rear Vision Camera Wiring Schematic (UVC with CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
