Keyless Entry (Except CZ2)

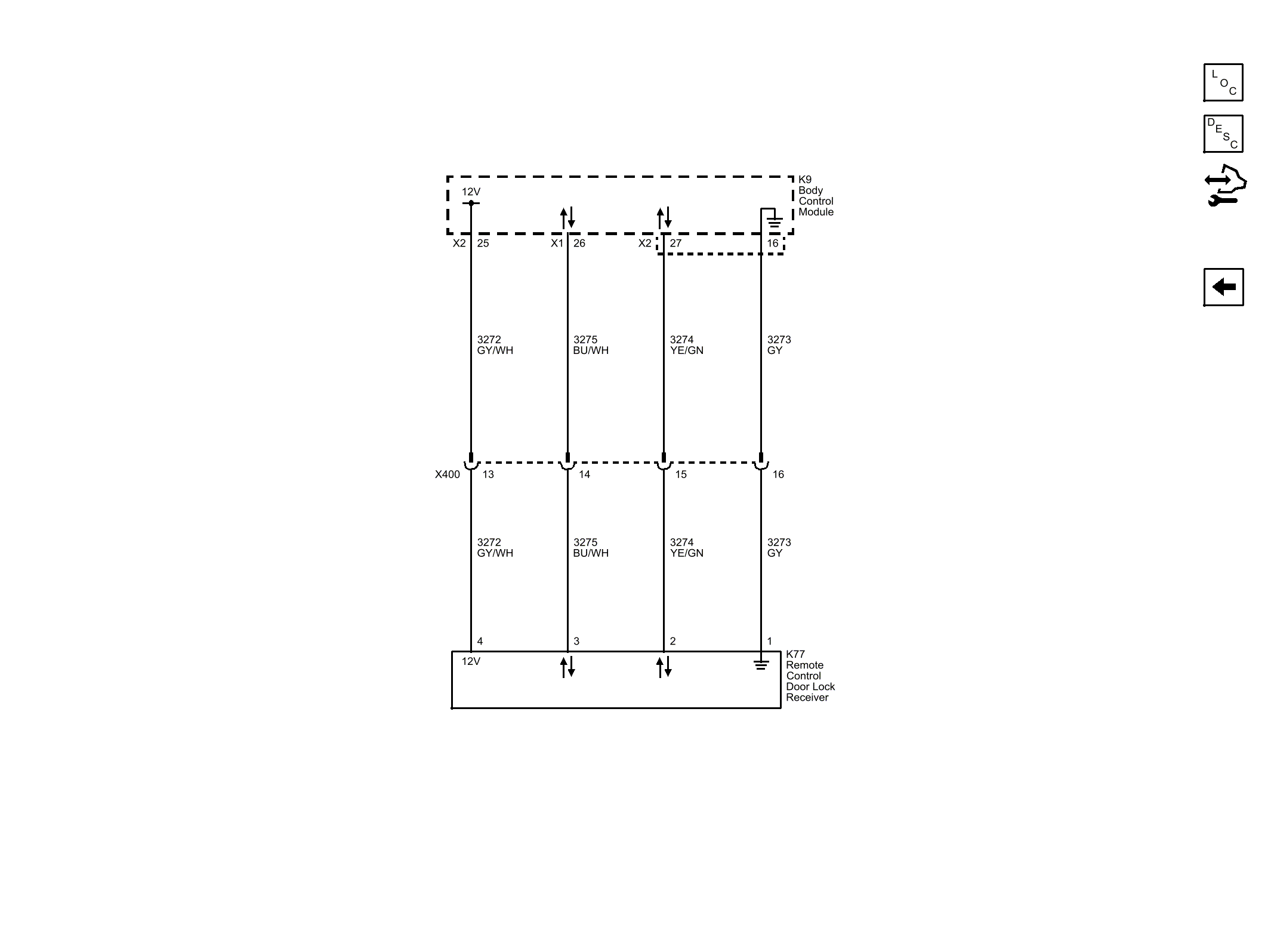

Fig 1: Keyless Entry (Except CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
