K20 Engine Control Module X1 (LUZ)
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

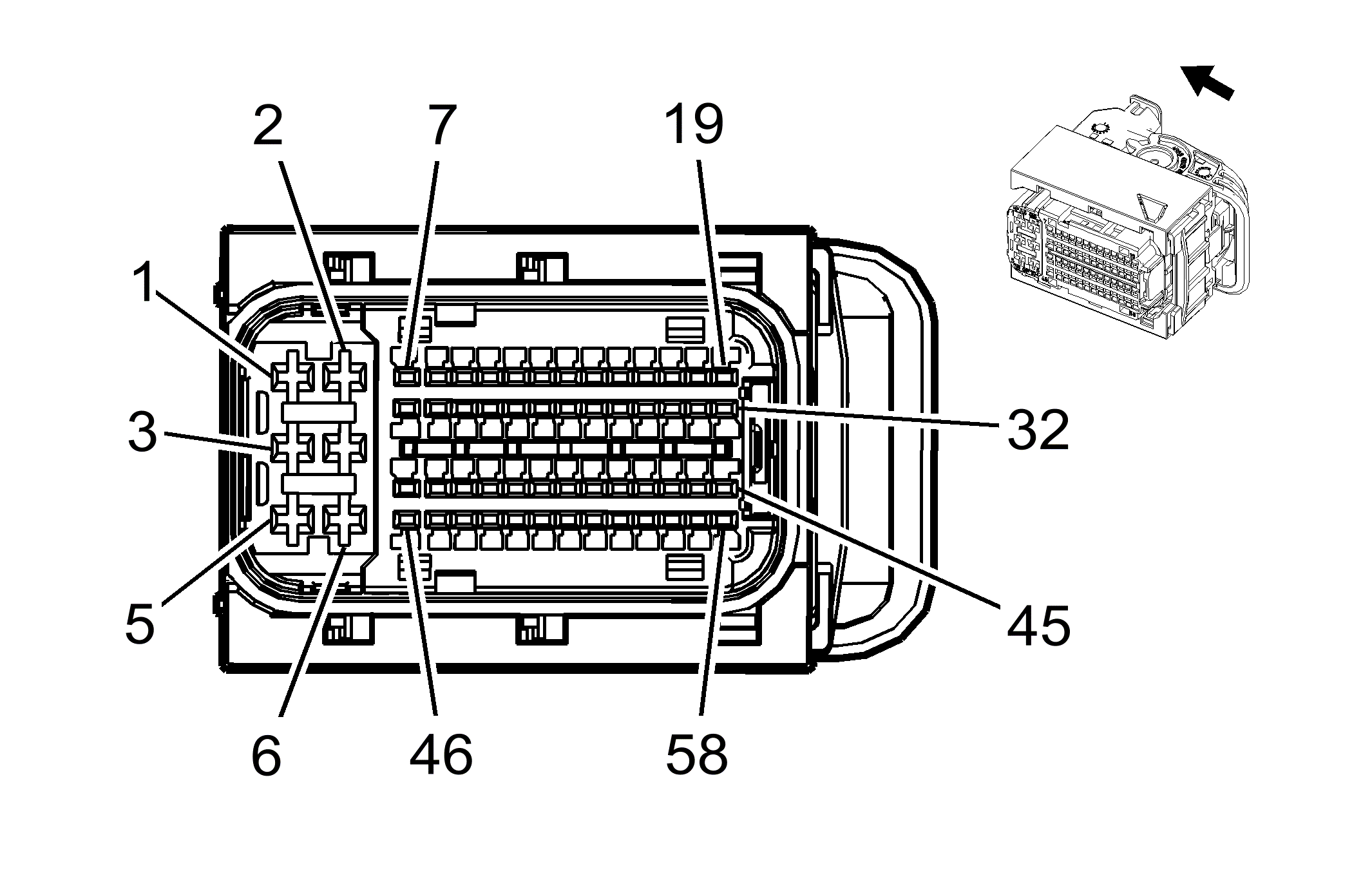

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13582182 | J-35616-35 (VT) | J-38125-12A | Not Available | Not Available | Not Available | Not Available |
| II | 19119843 | J-35616-35 (VT) | J-38125-12A | Not Available | Not Available | Not Available | Not Available |
K20 Engine Control Module X1 (LUZ)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 2.5 | VT/BU | 5290 | Powertrain Main Relay Fused Supply (1) | I | - |
| 2 | 2.5 | BK/WH | 451 | Signal Ground | I | - |
| 3 | 2.5 | VT/BU | 5290 | Powertrain Main Relay Fused Supply (1) | I | - |
| 4 | 2.5 | BK/WH | 451 | Signal Ground | I | - |
| 5 | 2.5 | VT/BU | 5290 | Powertrain Main Relay Fused Supply (1) | I | - |
| 6 | 2.5 | BK/WH | 451 | Signal Ground | I | - |
| 7 | 0.5 | WH/BK | 3102 | DEF Reverting Valve Low Control | II | - |
| 8 | 0.5 | WH/BN | 3237 | Exhaust Gas Recirculation Temperature Sensor Signal | II | - |
| 9 | 0.5 | BU/WH | 5277 | Exhaust Gas Temperature Sensor (1) | II | - |
| 10 | 0.5 | BN/GY | 7072 | Sensor Fuel Temperature 1 Signal | II | - |
| 11 | 0.5 | WH/GN | 5380 | Brake Position Sensor Signal | II | - |
| 12 | 0.5 | BK/BN | 5514 | A/C Refrigerant Pressure Sensor Low Reference | II | - |
| 13 | 0.75 | GY/WH | 3113 | Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1) | II | - |
| 14 | 0.5 | BN | 25 | Charge Indicator Control | II | - |
| 15 | 0.5 | BN/RD | 1274 | Accelerator Pedal Position 5 Volt Reference (2) | II | - |
| 16 | 0.5 | WH/RD | 5381 | Brake Position Sensor 5 Volt Reference | II | - |
| 17 | 0.5 | BN/RD | 2700 | A/C Pressure Sensor 5 Volt Reference | II | - |
| 18 | 0.5 | WH/RD | 6054 | Exhaust Pressure Sensor 5 Volt Reference (1) | II | - |
| 19 | 0.5 | WH/RD | 1164 | Accelerator Pedal Position 5 Volt Reference (1) | II | - |
| 20 | 0.5 | GN | 3101 | DEF Reverting Valve High Control | II | - |
| 21 | 0.5 | GN | 380 | A/C Refrigerant Pressure Sensor Signal | II | - |
| 22 | 0.5 | BK/BN | 6782 | Exhaust Gas Temperature Sensor 1 Low Reference | II | - |
| 23 | 0.5 | BU/VT | 1589 | Primary Fuel Level Sensor Signal | II | - |
| 24 | 0.5 | WH/BU | 6311 | Cruise/ETC/TCC Brake Signal | II | - |
| 25 | 0.5 | BK/GN | 6281 | Fuel Level Sensor Low Reference | II | - |
| 26 | 0.5 | BN/GY | 4008 | Humidity Sensor Signal | II | - |
| 27 | 0.5 | VT/YE | 5985 | Accessory Wakeup Serial Data | II | - |
| 28 | 0.5 | VT/GY | 139 | Run/Crank Ignition 1 Voltage | II | - |
| 29 | 0.5 | YE | 5991 | Powertrain Relay Coil Control | II | - |
| 30 | 0.5 | BK/YE | 5382 | Brake Position Sensor Low Reference | II | - |
| 31 | 0.75 | YE/BN | 179 | Oil Pump Command Signal | II | - |
| 32 | - | - | - | Not Occupied | - | - |
| 33 | 0.5 | BN/WH | 3100 | DEF Dosing Valve Low Control | II | - |
| 34-35 | - | - | - | Not Occupied | - | - |
| 36 | 0.5 | BU/YE | 6861 | Water In Fuel Sensor Signal | II | - |
| 37 | 0.5 | BK/VT | 1272 | Accelerator Pedal Position Low Reference (2) | II | - |
| 38 | 0.5 | BU | 6053 | Exhaust Pressure Sensor Signal (1) | II | - |
| 39 | 0.5 | GN/WH | 1162 | Accelerator Pedal Position Signal (2) | II | - |
| 40 | 0.5 | YE/GY | 6936 | Heated Oxygen Sensor Collector Signal | II | - |
| 41 | 0.5 | BN/WH | 6933 | Heated Oxygen Sensor Current Pump Signal | II | - |
| 42 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | II | - |
| 43 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | II | - |
| 44 | 0.5 | BK/BU | 1271 | Accelerator Pedal Position Low Reference (1) | II | - |
| 45 | 0.5 | WH/BK | 2366 | Cooling Fan Control Relay Speed Signal | II | - |
| 46 | 0.5 | BN | 3099 | DEF Dosing Valve High Control | II | - |
| 47 | 0.5 | WH/GY | 1786 | Transmission Park/Neutral Signal (1) | II | - |
| 48 | 0.5 | BK/BU | 6274 | Exhaust Gas Recirculation Temperature Sensor Low Reference | II | - |
| 49 | 0.5 | GY | 23 | Generator Field Duty Cycle Signal | II | - |
| 50 | 0.5 | BK/YE | 6055 | Exhaust Pressure Sensor Low Reference (1) | II | - |
| 51 | 0.5 | YE/WH | 1161 | Accelerator Pedal Position Signal (1) | II | - |
| 52 | 0.5 | BN | 6934 | Heated Oxygen Sensor Common | II | - |
| 53 | - | - | - | Not Occupied | - | - |
| 54 | 0.5 | BN/WH | 7073 | Sensor Fuel Temperature 1 Return | II | - |
| 55-56 | - | - | - | Not Occupied | - | - |
| 57 | 0.5 | WH/GY | 459 | A/C Compressor Clutch Relay Control | II | - |
| 58 | 0.5 | BU | 3017 | Fuel Heater Relay Control #1 | II | - |
