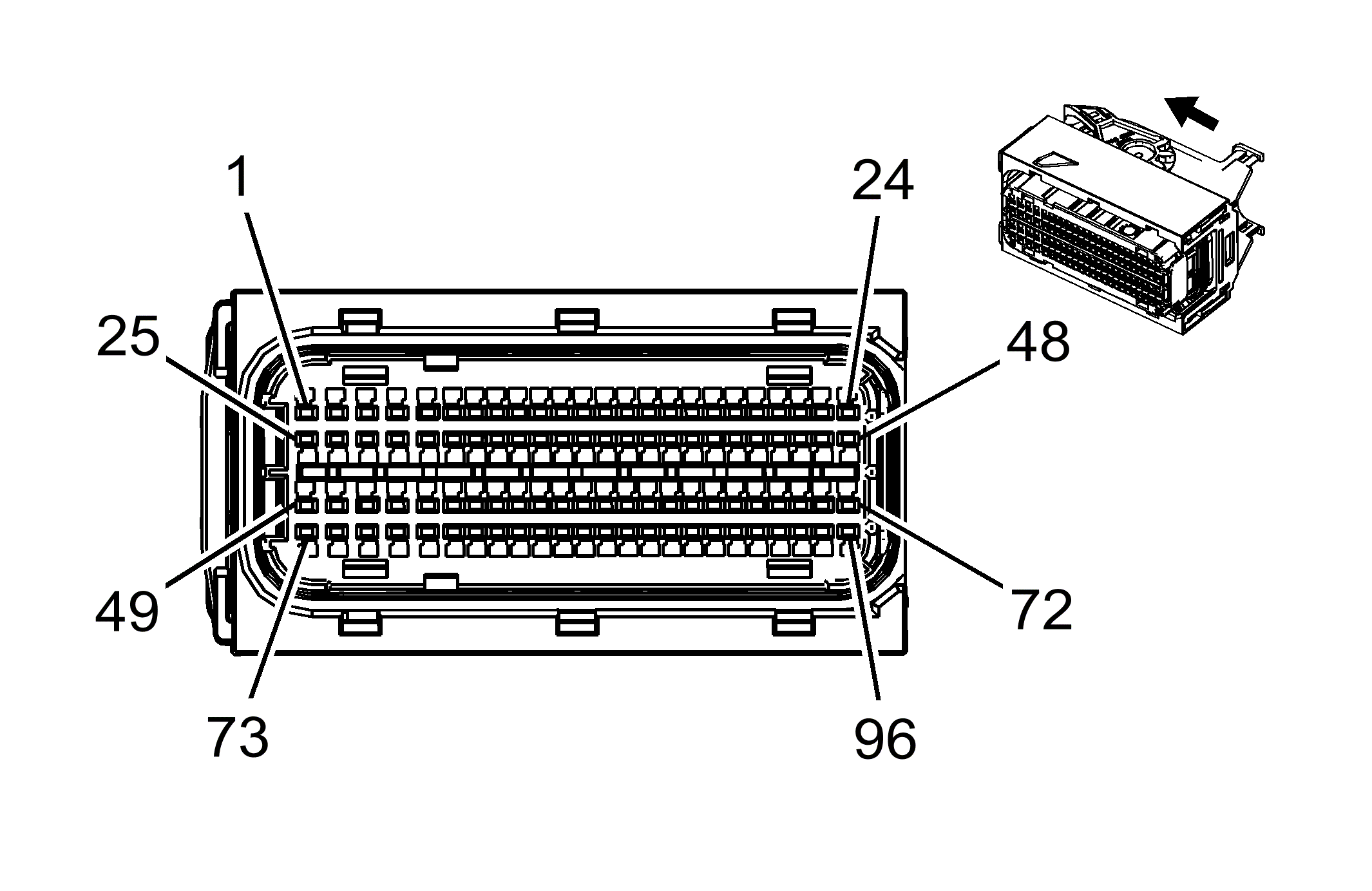

K20 Engine Control Module X2 (LUZ)

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Engine
OEM Connector: 13292742
Service Connector: 13384307
Description: 96-Way F 0.6, 1.5 MQS, 2.8 Series, Sealed (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13582289	J-35616-16 (L-GN)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	19119843	J-35616-35 (VT)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

K20 Engine Control Module X2 (LUZ)

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	1.5	BN/WH	4901	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 1	I	-
2	1.5	BU/WH	4904	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4	I	-
3	-	-	-	Not Occupied	-	-
4	0.75	YE	581	Throttle Actuator Control Open	II	-
5	0.5	BK/VT	2755	Oil Pressure Sensor Low Reference	II	-
6-7	-	-	-	Not Occupied	-	-
8	0.5	BN/RD	2917	Fuel Rail Pressure Sensor (5) Volt Reference	II	-
9	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5 Volt Reference	II	-
10	0.5	GY/YE	5297	Camshaft Position Exhaust Sensor Supply Voltage (1)	II	-
11	0.5	WH/RD	3201	Throttle Inlet Absolute Pressure Sensor 5V Reference	II	-
12	-	-	-	Not Occupied	-	-
13	0.5	GY/RD	5928	Variable Nozzle Turbo Position Sensor Voltage Reference	II	-
14	-	-	-	Not Occupied	-	-
15	0.5	WH/RD	2705	Oil Pressure Sensor 5 Volt Reference	II	-
16	-	-	-	Not Occupied	-	-
17	0.5	WH	7494	High Speed GMLAN Serial Data (-) (3)	II	-
18	0.5	YE/RD	3106	DEF Pressure Sensor 5V Reference	II	-
19	0.5	BU/RD	5047	Exhaust Gas Recirculation 5 Volt Reference (1)	II	-
20	0.5	BN/YE	3108	DEF Pressure Sensor Signal	II	-
21	0.5	BN/RD	2701	Throttle Position Sensor 5 Volt Reference	II	-
22	0.5	GN/GY	465	Fuel Pump Primary Relay Control	II	-
23	0.5	YE/BK	625	Starter Enable Relay Control	II	-
24	0.5	BU/WH	2530	Fuel Rail Pressure Solenoid Supply Voltage	II	-
25	1.5	BN	4801	Direct Fuel Injector (DFI) High Voltage Control Cylinder 1	I	-
26	1.5	BN/YE	4804	Direct Fuel Injector (DFI) High Voltage Control Cylinder 4	I	-
27	-	-	-	Not Occupied	-	-
28	0.75	BN/WH	582	Throttle Actuator Control Close	II	-
29	0.5	BK/GN	469	Manifold Absolute Pressure Sensor Low Reference	II	-
30	0.5	BK/GN	2919	Fuel Rail Pressure Sensor Low Reference	II	-
31	0.5	BN	3681	Charge Air Cooler Outlet Temperature Sensor Signal	II	-
32	0.5	YE/BU	3680	Charge Air Cooler Outlet Temperature Sensor Return	II	-
33	0.5	YE/GN	3236	Exhaust Gas Recirculation Temperature Sensor #2 Signal	II	-
34	-	-	-	Not Occupied	-	-
35	0.5	YE/BN	331	Oil Pressure Sensor Signal	II	-
36	-	-	-	Not Occupied	-	-
37	0.5	VT/YE	5947	Variable Nozzle Turbo Position Sensor Signal	II	-
38	-	-	-	Not Occupied	-	-
39	0.5	BK/BN	5929	Variable Nozzle Turbo Position Sensor Low Reference	II	-
40	0.5	BK/GY	6052	Mass Air Flow Sensor Low Reference	II	-
41	0.5	BU/BK	7493	High Speed GMLAN Serial Data (+) (3)	II	-
42	0.5	BK/GN	3107	DEF Pressure Sensor Low Reference	II	-
43	0.5	BK/GY	5296	Camshaft Position Exhaust Sensor Low Reference (1)	II	-
44	0.5	GN	573	Crankshaft Position Sensor Signal (1)	II	-
45	0.5	BK/VT	574	Crankshaft Position Sensor Low Reference (1)	II	-
46	0.5	BK/VT	3104	DEF Smart Pump Low Reference	II	-
47	0.75	WH/BK	5931	Variable Nozzle Turbo Solenoid Low Signal	II	-
48	0.5	YE	2928	Fuel Metering Valve High Control	II	-
49	1.5	GN	4803	Direct Fuel Injector (DFI) High Voltage Control Cylinder 3	I	-
50	1.5	BU	4802	Direct Fuel Injector (DFI) High Voltage Control Cylinder 2	I	-
51	-	-	-	Not Occupied	-	-
52	0.75	WH/VT	5764	Exhaust Gas Recirculation Valve Motor High Signal	II	-
53	-	-	-	Not Occupied	-	-
54	0.5	YE/WH	3200	Throttle Inlet Absolute Pressure Sensor Signal	II	-
55	0.5	BK/BN	2752	Throttle Position Sensor Low Reference	II	-
56	0.5	WH/BU	6289	Induction Air Temperature Sensor Signal	II	-
57	0.5	BK/YE	6275	Exhaust Gas Recirculation Temperature Sensor #2 Low Reference	II	-
58	0.5	GN/BN	507	Wait To Start Indicator Control	II	-
59	0.5	GY/GN	5378	Exhaust Gas Temperature Sensor (3)	II	-
60	0.5	BU	3105	DEF Smart Pump Control	II	-
61	0.5	BN/GN	485	Throttle Position Sensor Signal (1)	II	-
62	0.5	BN/WH	5763	Exhaust Gas Recirculation Valve Sensor Signal	II	-
63	0.5	RD/WH	140	Battery Positive Voltage	II	-
64	0.5	VT/BK	5273	Camshaft Position Exhaust Sensor (1)	II	-
65	0.5	BN/GN	1174	Oil Level Switch Signal	II	-
66	0.5	YE/BK	3682	Charge Air Cooler Inlet Temperature Sensor Return	II	-
67	0.5	GN	3683	Charge Air Cooler Inlet Temperature Sensor Signal	II	-
68	0.5	BK/GN	3657	Exhaust Gas Temperature Sensor #3 Low Reference	II	-
69	0.5	BK/BU	6783	Exhaust Gas Temperature Sensor 2 Low Reference	II	-
70	0.5	GN/GY	7316	Variable Swirl Valve PWM Control Signal	II	-
71	0.75	BN/GY	435	Exhaust Gas Recirculation Solenoid Control	II	-
72	0.5	BN/BK	2929	Fuel Metering Valve Low Control	II	-
73	1.5	GN/GY	4903	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 3	I	-
74	1.5	BU/GY	4902	Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2	I	-
75	-	-	-	Not Occupied	-	-
76	0.75	VT/BK	5746	Exhaust Gas Recirculation Valve Motor Low Signal	II	-
77	0.5	BK/BN	2761	Coolant Temperature Sensor Low Reference	II	-
78	0.5	GY	3103	DEF Smart Pump Supply Voltage	II	-
79	0.5	BK/VT	2760	Intake Air Temperature Sensor Low Reference	II	-
80-81	-	-	-	Not Occupied	-	-
82	0.5	GY/VT	7368	Variable Swirl and Actuator Position Signal	II	-
83	0.5	BU	410	Engine Coolant Temperature Sensor Signal	II	-
84	0.5	BU/GN	5377	Exhaust Gas Temperature Sensor (2)	II	-
85	0.5	GN/WH	432	Manifold Absolute Pressure Sensor Signal	II	-
86	0.5	BU/WH	2918	Fuel Rail Pressure Sensor Signal	II	-
87	0.5	BN/WH	419	Check Engine Indicator Control	II	-
88-91	-	-	-	Not Occupied	-	-
92	0.5	GN/WH	492	Mass Air Flow Sensor Signal	II	-
93	0.5	BK/BN	2753	Exhaust Gas Recirculation Sensor Low Reference	II	-
94	-	-	-	Not Occupied	-	-
95	0.75	YE/BU	1497	Crankcase Ventilation (Blowby) Heater Control Signal	II	-
96	0.5	BK/YE	2834	Fuel Rail Pressure Solenoid Low Reference	II	-
