K22 Cooling Fan Control Module (LUZ)
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | Pending | Pending | Not Available | Not Available | Not Available | Not Available |

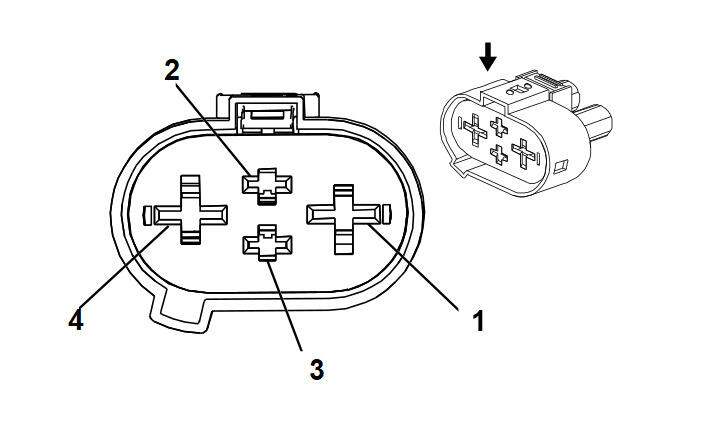

K22 Cooling Fan Control Module (LUZ)
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 6 | YE | 5358 | Current Sensor Signal | I | (LUZ) |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.5 | WH/BK | 2366 | Current Sensor Supply Voltage | I | (LUZ) |
| 4 | 6 | BK | 1250 | Current Sensor Low Reference | I | (LUZ) |
