Rear Vision Camera (UVC) Wiring Schematics

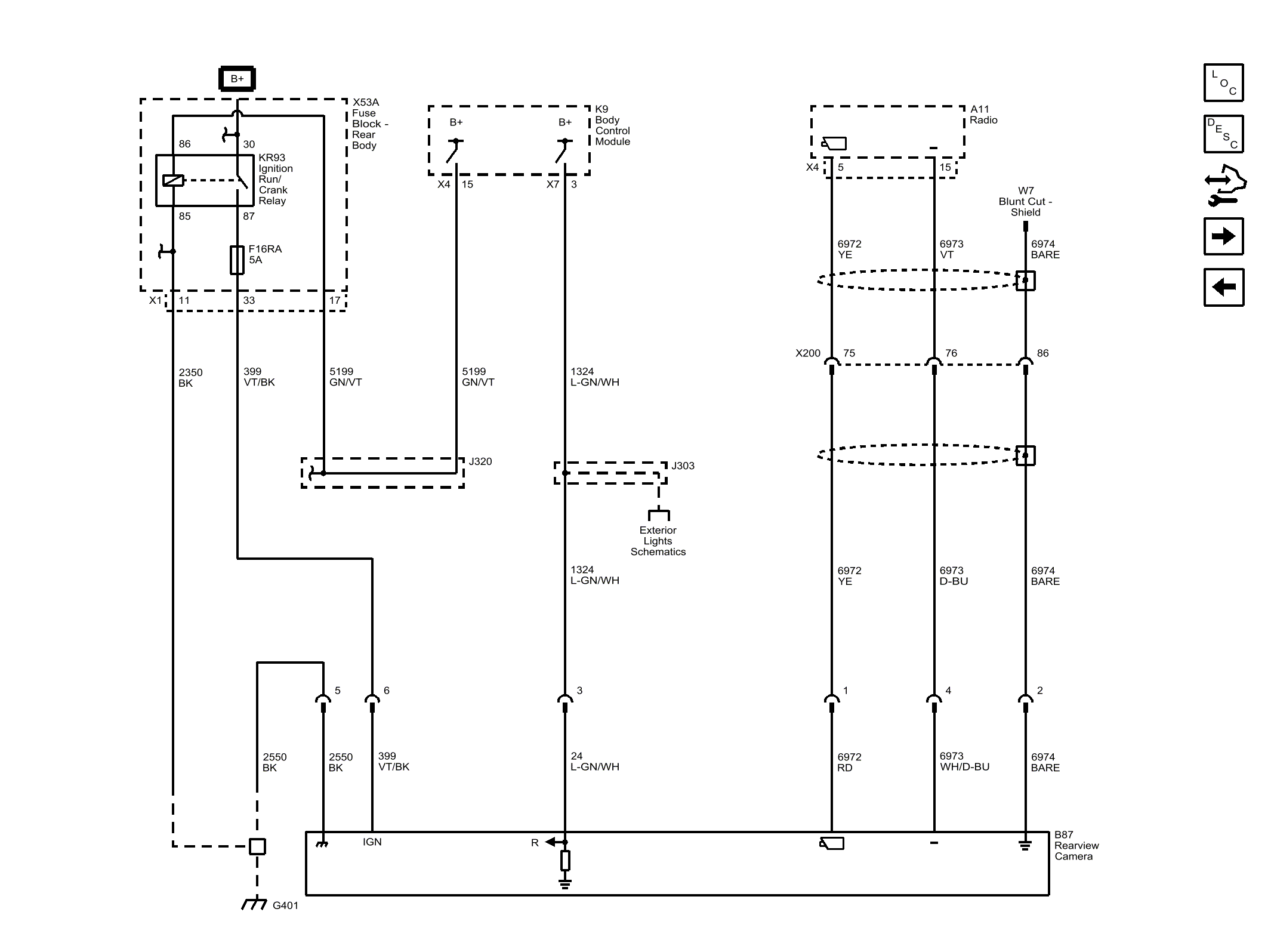

Fig 1: Rear Vision Camera (UVC) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
