Multimedia Player Interface (KTA) Wiring Schematics

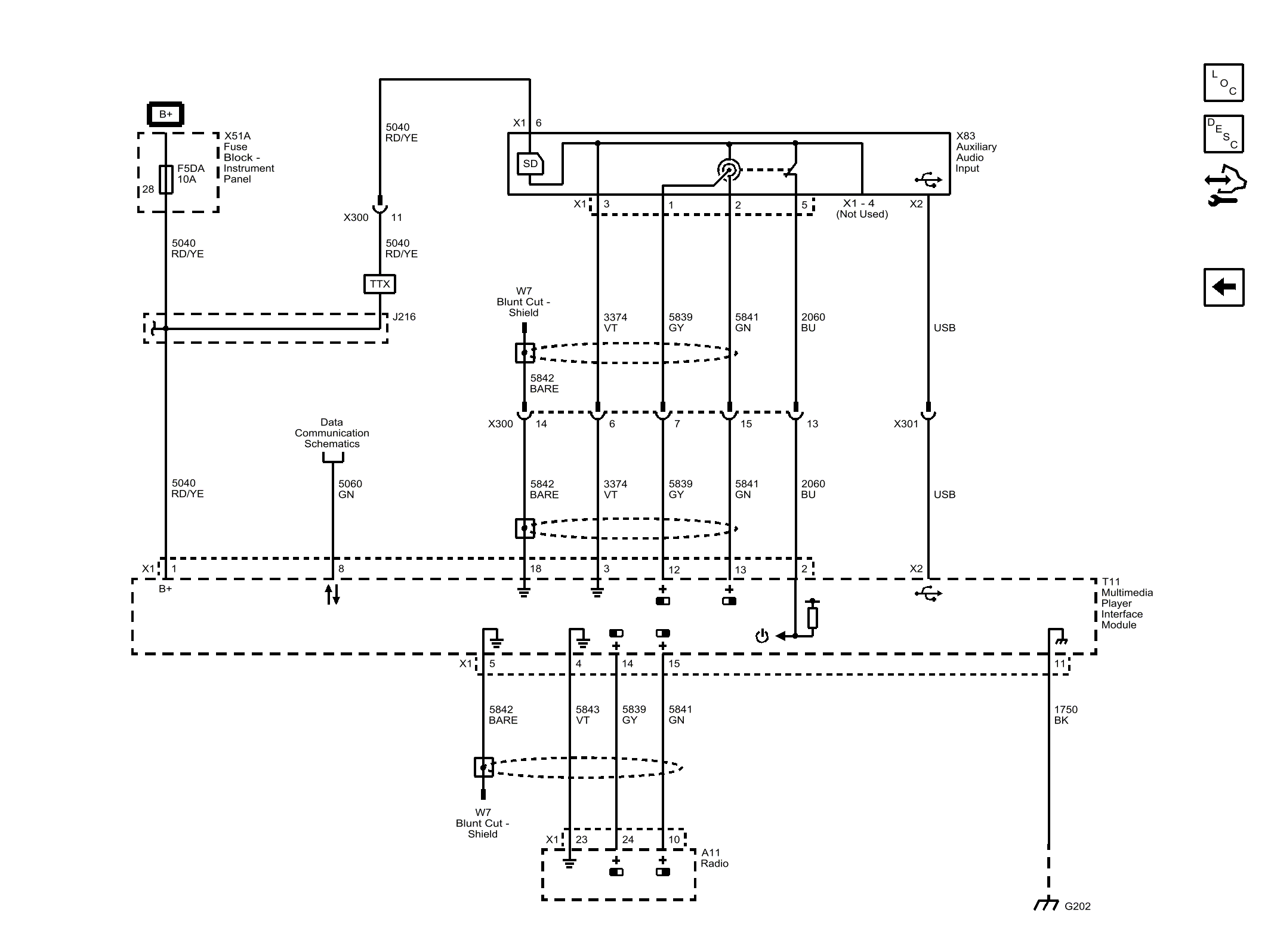

Fig 1: Multimedia Player Interface (KTA) Wiring Schematic
GM3336572Courtesy of GENERAL MOTORS COMPANY
