Rear Seat Side Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

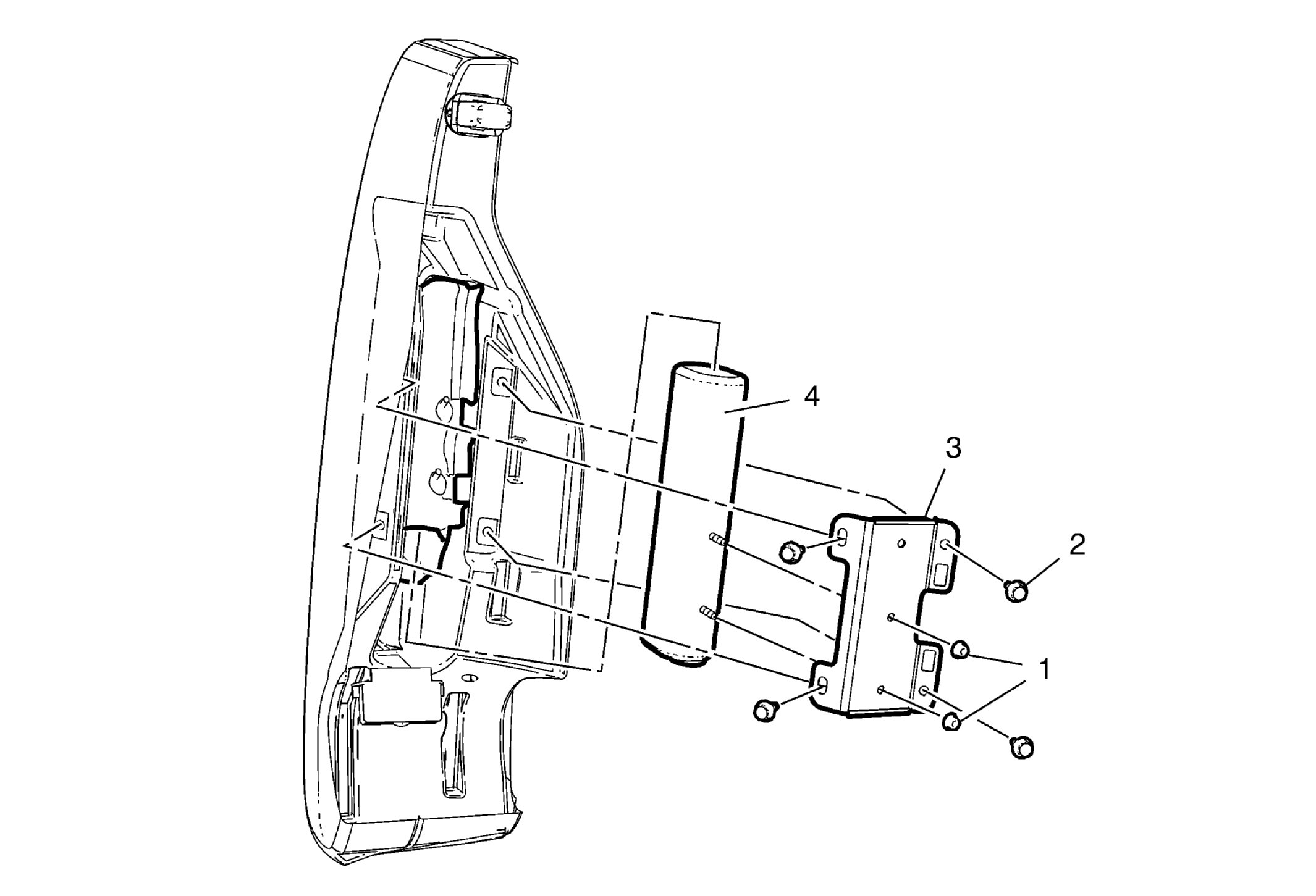

Fig 1: Rear Seat Side Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Following the deployment of a rear seat side air bag, inspect the following parts for damage. Replace these parts if necessary: The rear seat side bolster, attachments, brackets and wiring The rear seat back frame, cushion and cover The rear seat cushion frame, cushion and cover Failure to do so may cause future personal injury. Preliminary Procedures Disable the SIR. Refer to SIR Disabling and Enabling . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Cushion Bolster Replacement .
1	Rear Seat Side Inflatable Restraint Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3.25 N.m (29 lb in)
2	Rear Seat Side Inflatable Restraint Bracket
3	Rear Seat Side Inflatable Restraint Bracket Bolt (Qty: 4)
4	Rear Seat Side Inflatable Restraint Module Procedure Disconnect electrical connector. Remove seat side airbag from seat cover chute. Install seat side airbag into airbag chute with connector facing down. Airbag mounting studs must fit through airbag chute holes and then into airbag bracket. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
