Roof Side Rail Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

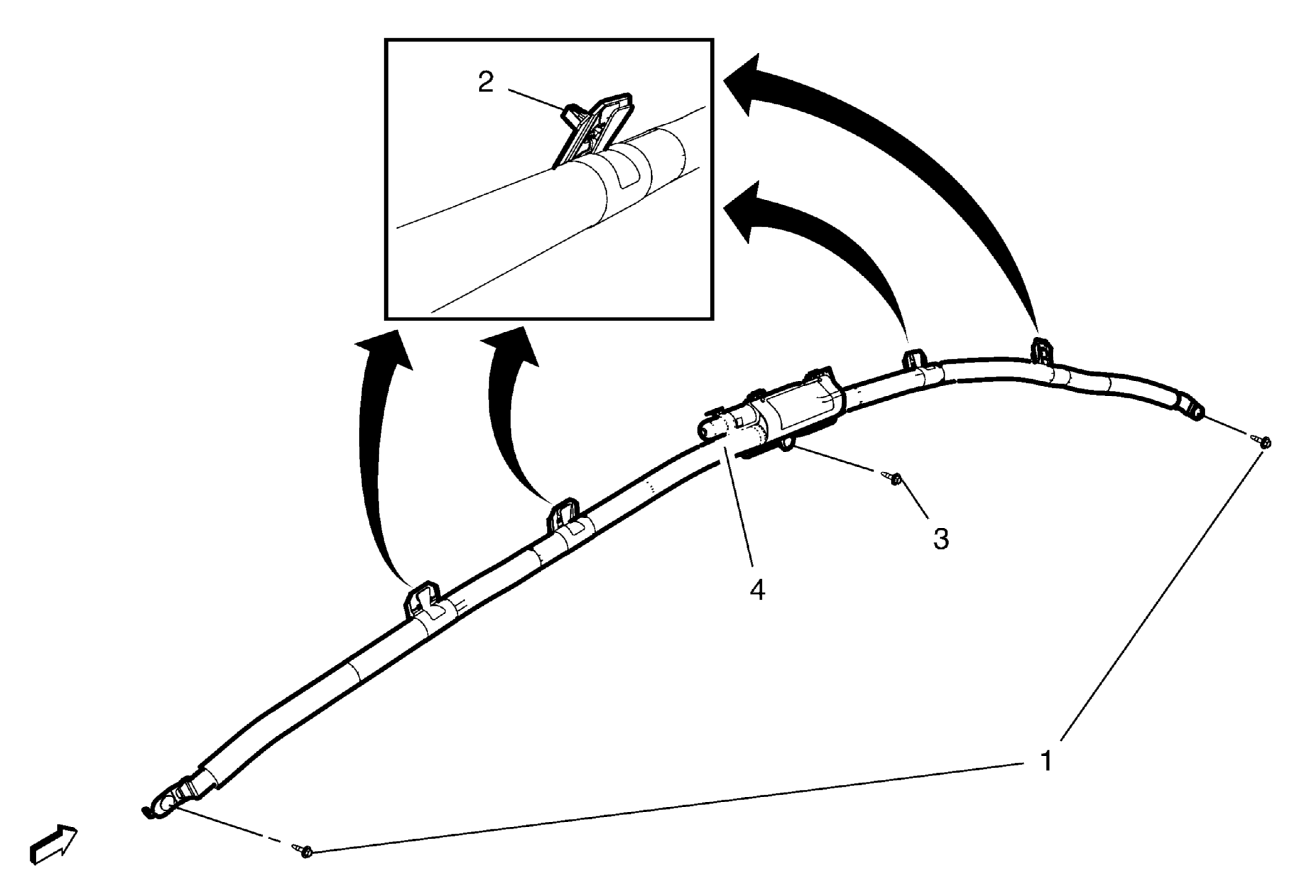

Fig 1: Roof Side Rail Inflatable Restraint Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning WARNING: Refer to SIR Warning Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
1	Roof Side Rail Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9.5 N.m (84 lb in)
2	Roof Side Rail Inflatable Restraint Module Retainer (Qty: 4)
3	Roof Side Rail Inflatable Restraint Module Fastener Tighten 9.5 N.m (84 lb in)
4	Roof Side Rail Inflatable Restraint Module Procedure Disconnect the electrical connector.
