Shift Lock Control System

WARNING: This page is about a different variant/trim than selected.

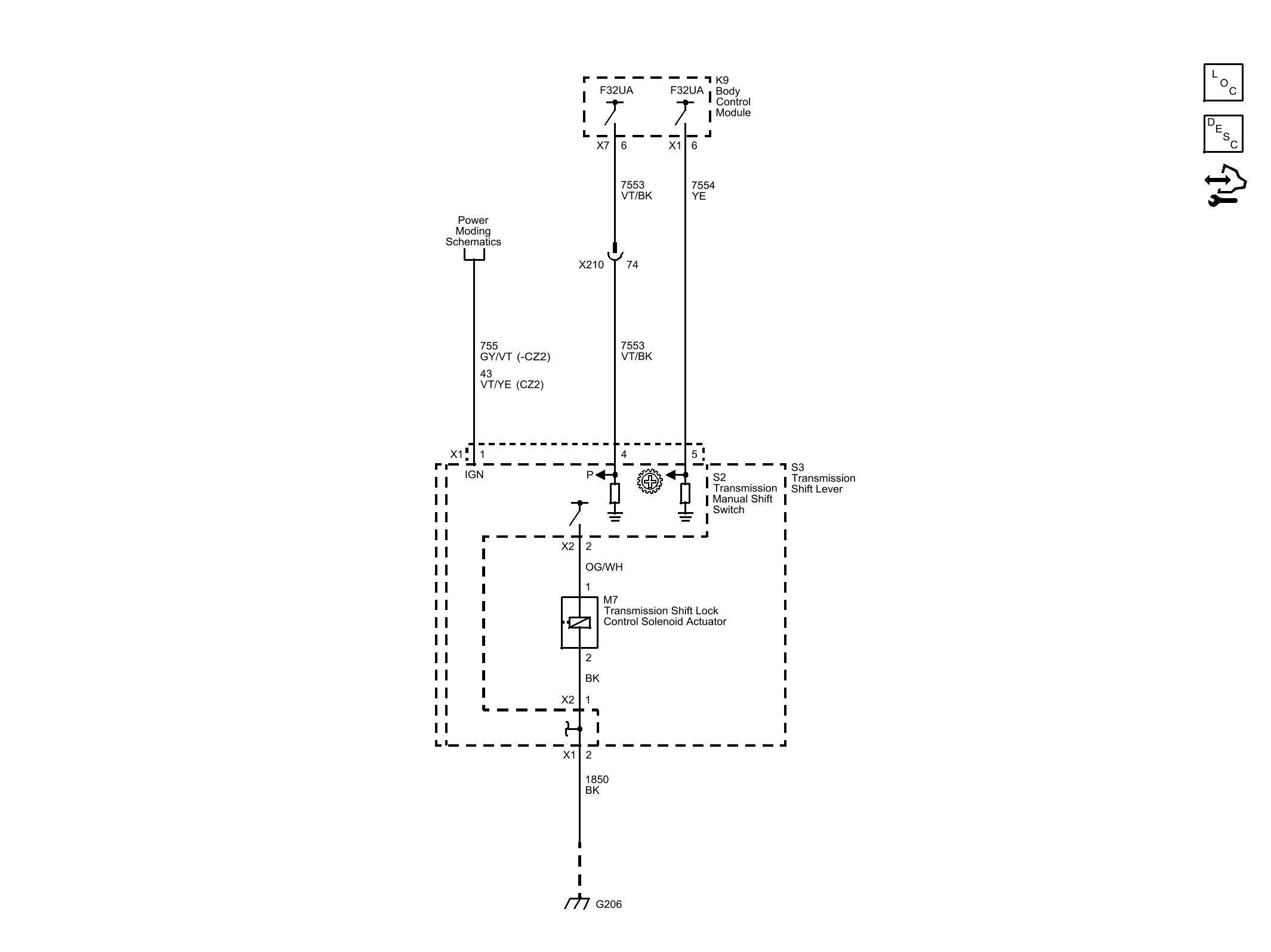

Fig 1: Shift Lock Control System
GM3770338Courtesy of GENERAL MOTORS COMPANY
