Power, Ground and Serial Data

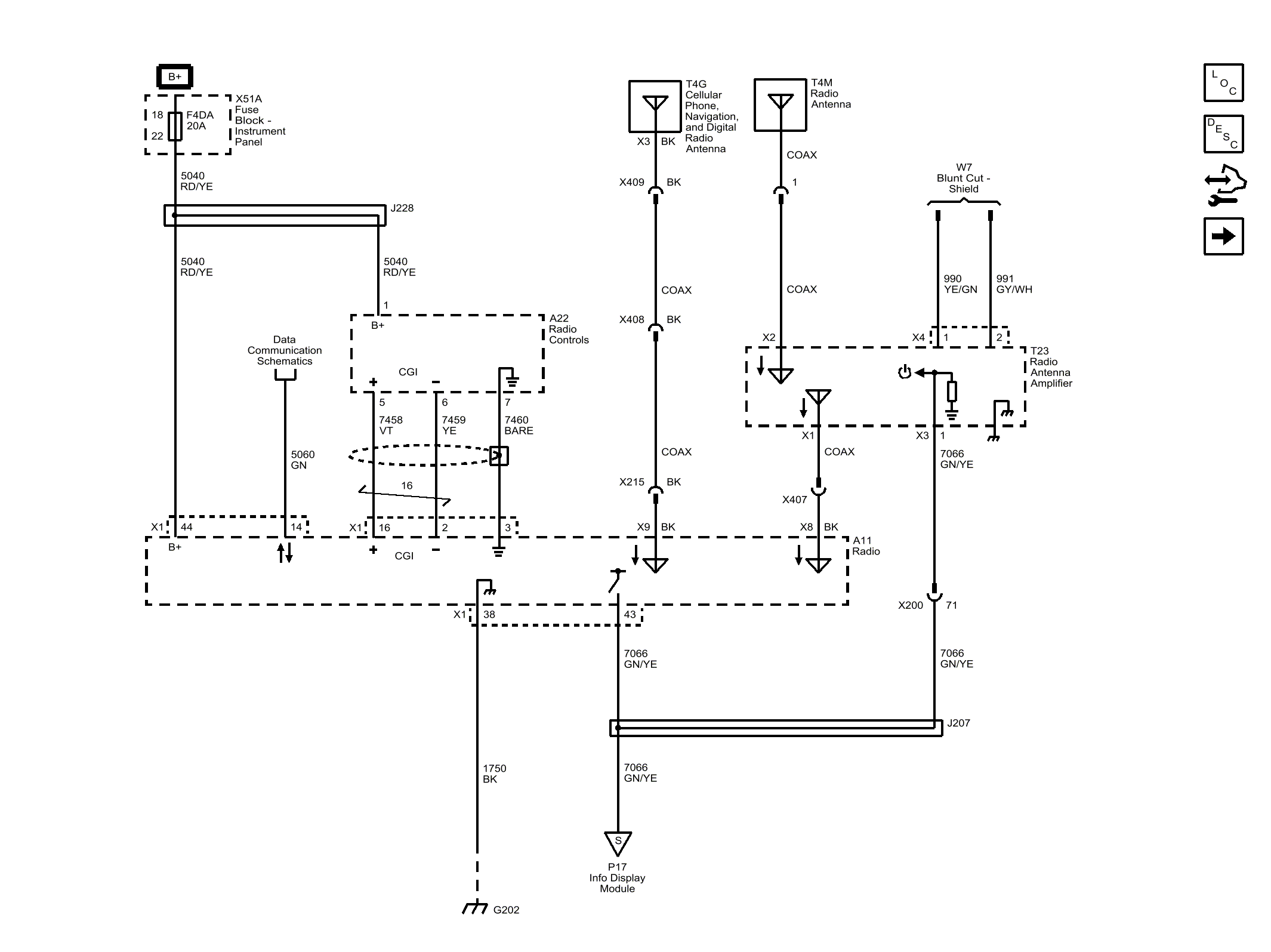

Fig 1: Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
