Remote Control Door Lock Receiver Replacement

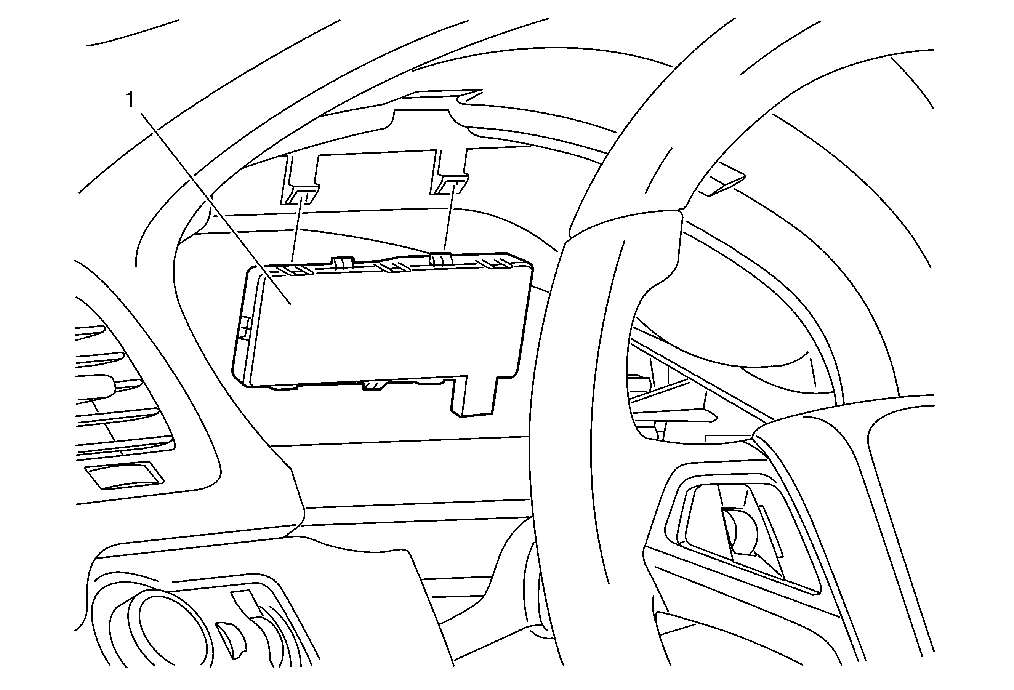

Fig 1: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1	Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. Unsnap the lock receiver from the instrument panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument cluster. Refer to Instrument Cluster Replacement .

Remote Control Door Lock Receiver

Procedure

Disconnect the electrical connector.
Unsnap the lock receiver from the instrument panel.
