Sunroof Module Assembly Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

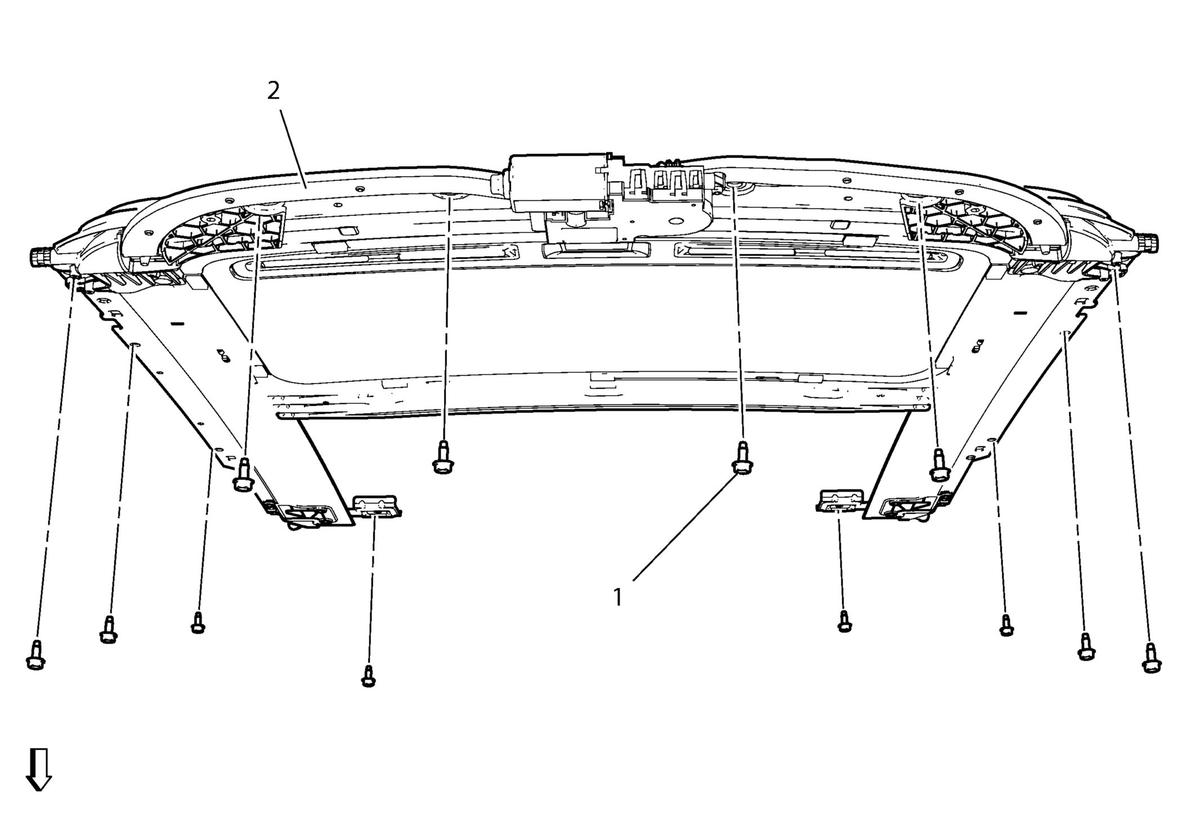

Fig 1: Sunroof Module assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (Without Sunroof) and Headlining Trim Panel Replacement (With Sunroof)
1	Sunroof Module Bolt (Qty: 12) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector from the motor. Disconnect the drain hoses from the sunroof module assembly. Tighten 9 N.m (80 lb in)
2	Sunroof Module Assembly Procedure A new sunroof module assembly does not include the sunroof window, the motor, the sunshade or the finishing lace as components. You must install the old components to the new sunroof module assembly.

Callout

Component Name

Preliminary Procedures
Remove the headlining trim panel. Refer to Headlining Trim Panel Replacement (Without Sunroof) and Headlining Trim Panel Replacement (With Sunroof)

Sunroof Module Bolt (Qty: 12)

CAUTION: Refer to Fastener Caution .

Procedure

Disconnect the electrical connector from the motor.
Disconnect the drain hoses from the sunroof module assembly.

Tighten
9 N.m (80 lb in)

Sunroof Module Assembly
Procedure
A new sunroof module assembly does not include the sunroof window, the motor, the sunshade or the finishing lace as components. You must install the old components to the new sunroof module assembly.
