Radiator Assembly and Front of Engine Compartment Components

Radiator Assembly and Front of Engine Compartment Components

Items
1. B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2
2. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
3. G10 Cooling Fan Motor G10 Cooling Fan Motor (F3+L)
4. B111 Turbocharger Boost Sensor B111 Turbocharger Boost Sensor

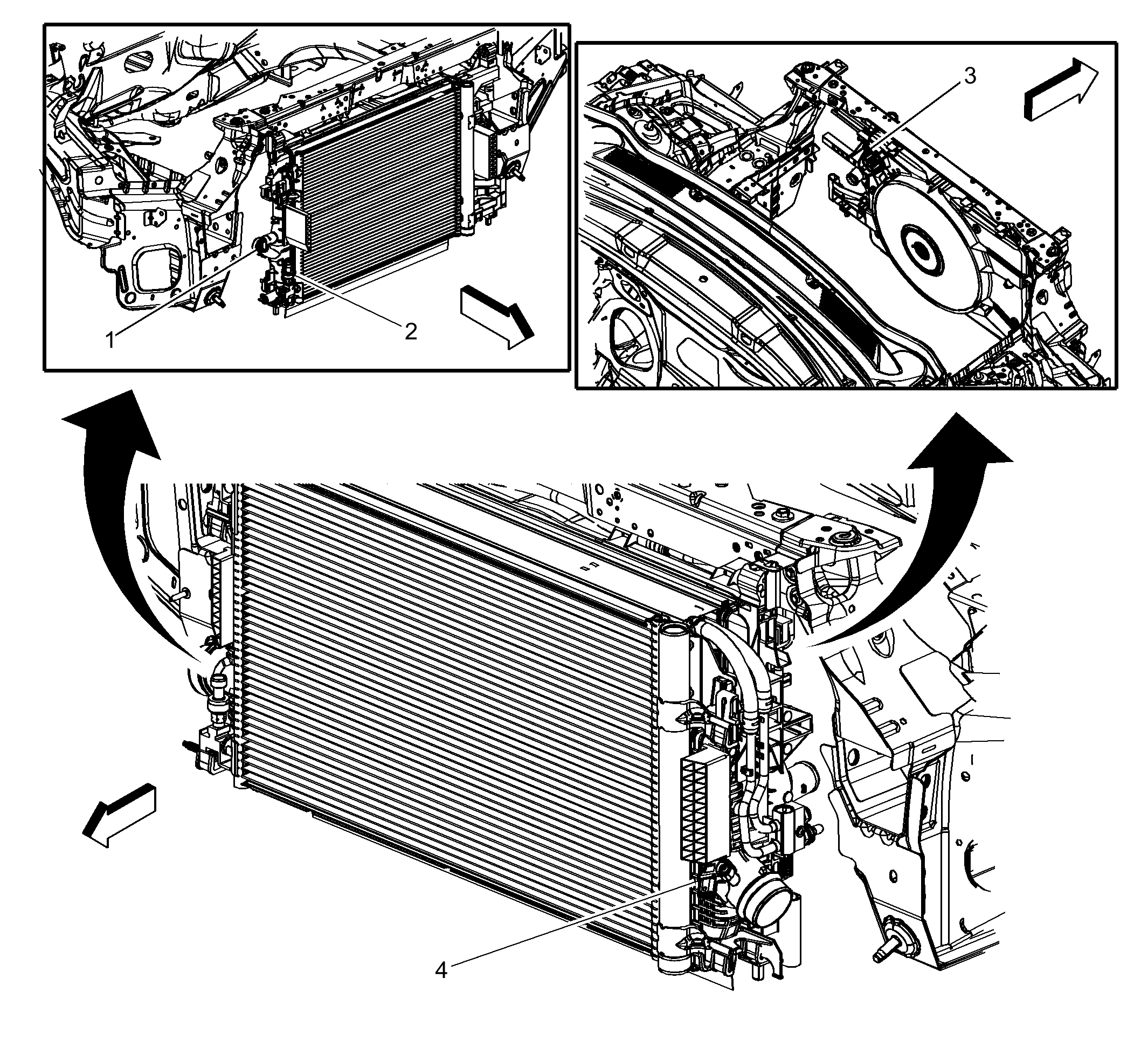

Fig 1: Radiator Assembly and Front of Engine Compartment Components
GM4238019Courtesy of GENERAL MOTORS COMPANY
