Intake Manifold Assembly- 1.4L

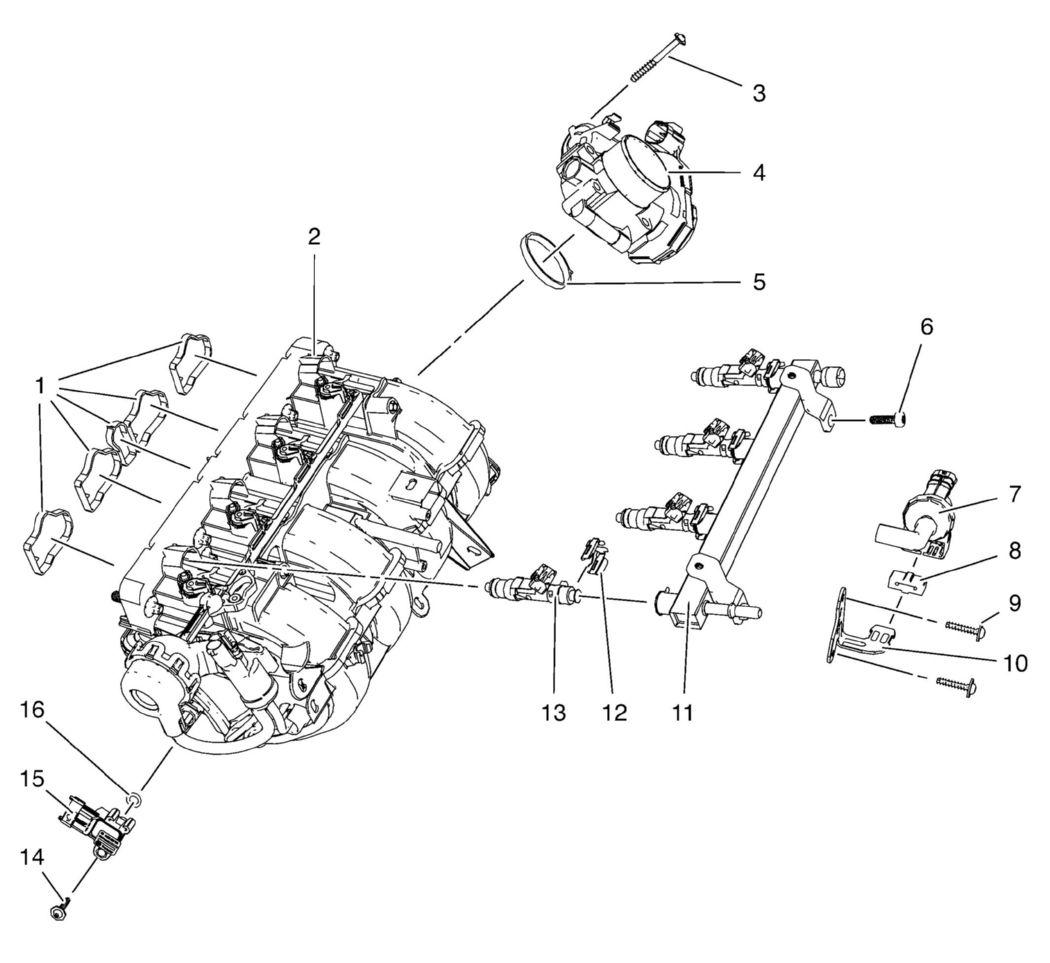

Fig 1: Locating Intake Manifold Assembly Components - 1.4L

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Manifold Sealings
2	Intake Manifold (With Intake Manifold Runner and Intake Manifold Runner Valve)
3	Throttle Body Bolt
4	Throttle Body
5	Throttle Body Seal Ring
6	Fuel Injection Fuel Rail Bolt
7	Evaporative Emission Canister Purge Solenoid Valve
8	Evaporative Emission Canister Purge Solenoid Valve Rubber
9	Evaporative Emission Canister Purge Solenoid Valve Bracket Bolt
10	Evaporative Emission Canister Purge Solenoid Valve Bracket
11	Fuel Injection Fuel Rail
12	Fuel Injector Retainer Clamp
13	Fuel Injector
14	Manifold Absolute Pressure Sensor Bolt
15	Manifold Absolute Pressure Sensor
16	Manifold Absolute Pressure Sensor Seal Ring
