Mode Control Cam Replacement

WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

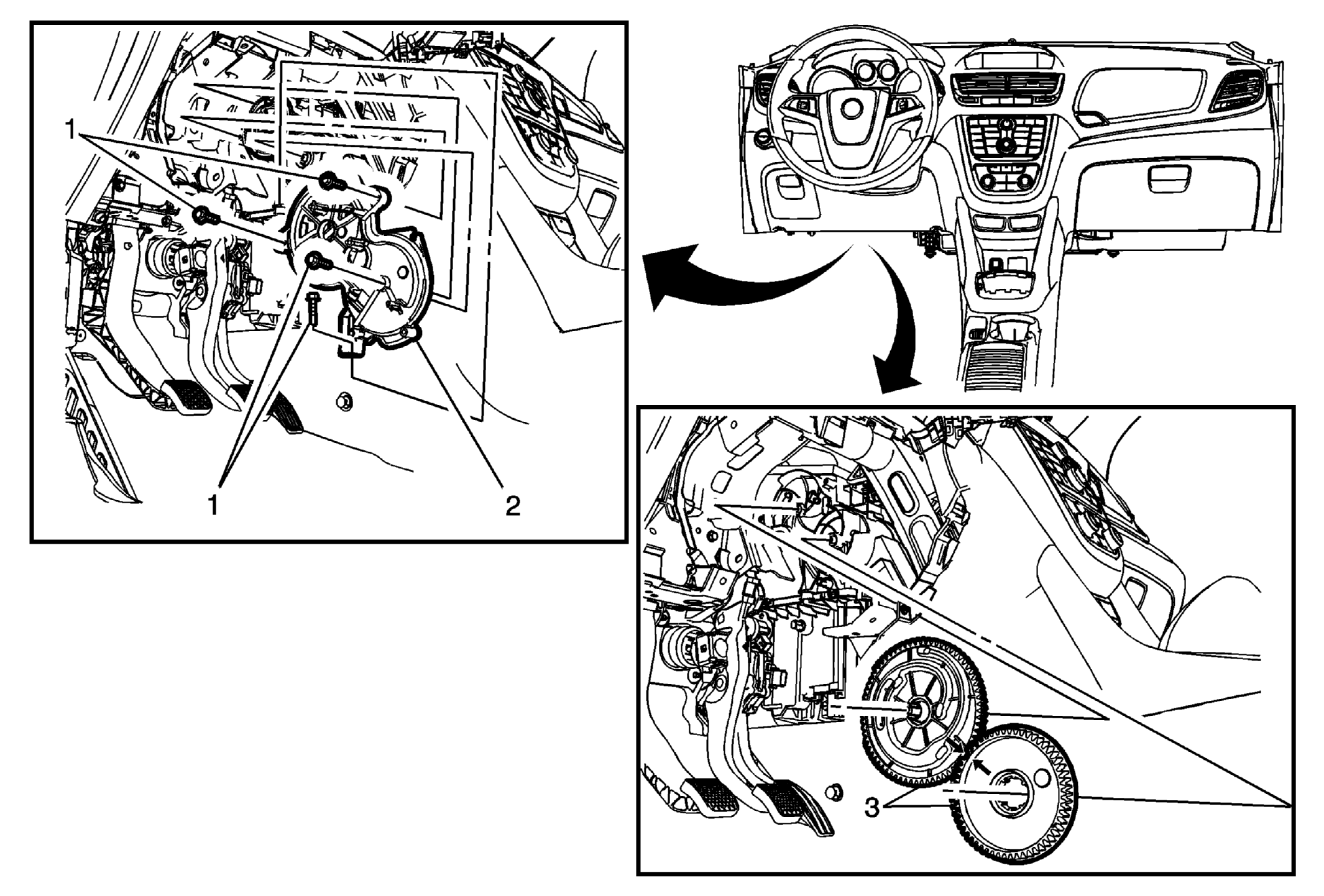

Fig 1: Mode Control Cam

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the mode control cam actuator. Refer to Mode Control Cam Actuator Replacement (C67) . Remove the left air inlet valve actuator. Refer to Air Inlet Valve Actuator Replacement - Left Side (With CJ2) .
1	Heater and Air Conditioning Evaporator and Blower Bracket Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Heater and Air Conditioning Evaporator and Blower Bracket
3	Heater and Air Conditioning Mode Control Cam (Qty: 2) Procedure Index the wider male heater and air conditioning mode control cam gear tooth, to the wider female heater and air conditioning mode control cam gear tooth.
