Sun Load Temperature Sensor Replacement

WARNING: This page is about a different car, the 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

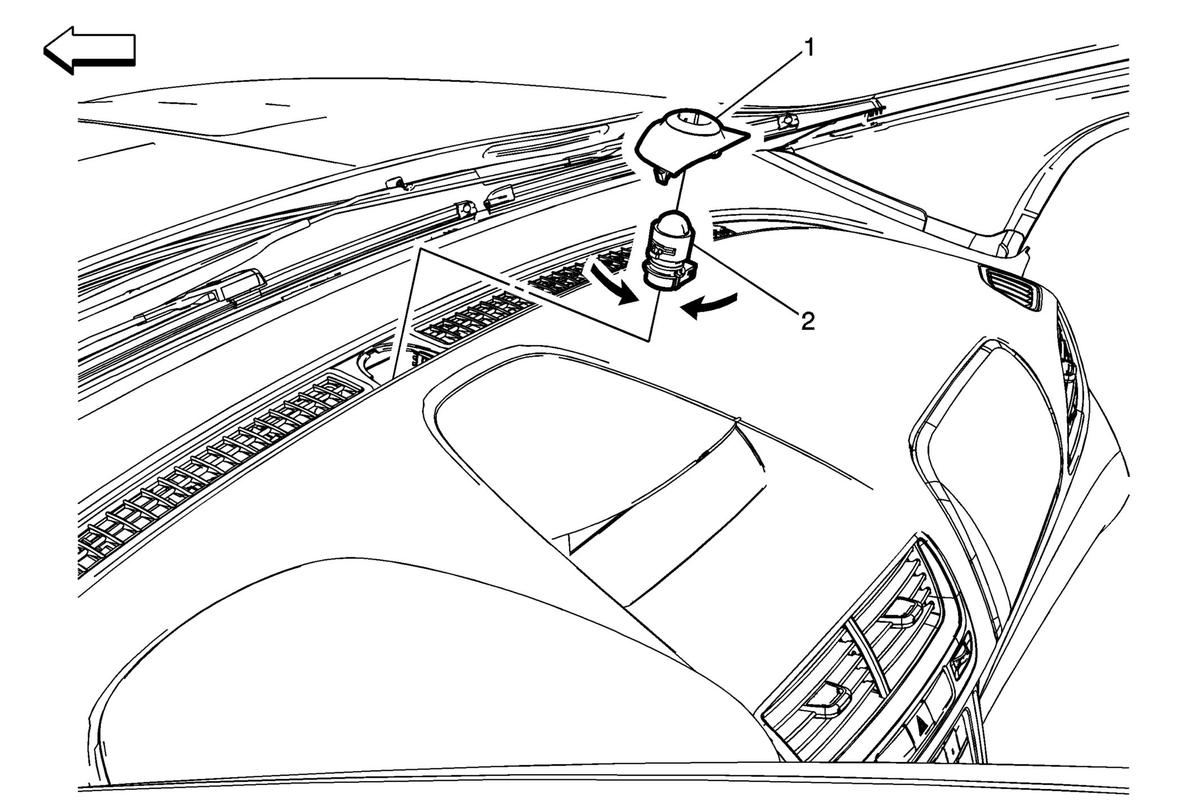

Fig 1: Sun Load Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sun Load Temperature Sensor Bezel Refer to Sun Load Temperature Sensor Bezel Replacement (Encore) Sun Load Temperature Sensor Bezel Replacement (Trax) .
2	Sun Load Temperature Sensor Procedures Disconnect the electrical sun load temperature sensor connector. Turn the sun load temperature sensor quarter of a turn clockwise to remove.

Callout

Component Name

Sun Load Temperature Sensor Bezel
Refer to Sun Load Temperature Sensor Bezel Replacement (Encore) Sun Load Temperature Sensor Bezel Replacement (Trax) .

Sun Load Temperature Sensor

Procedures

Disconnect the electrical sun load temperature sensor connector.
Turn the sun load temperature sensor quarter of a turn clockwise to remove.
