Rearview Camera (Trax with UVC)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

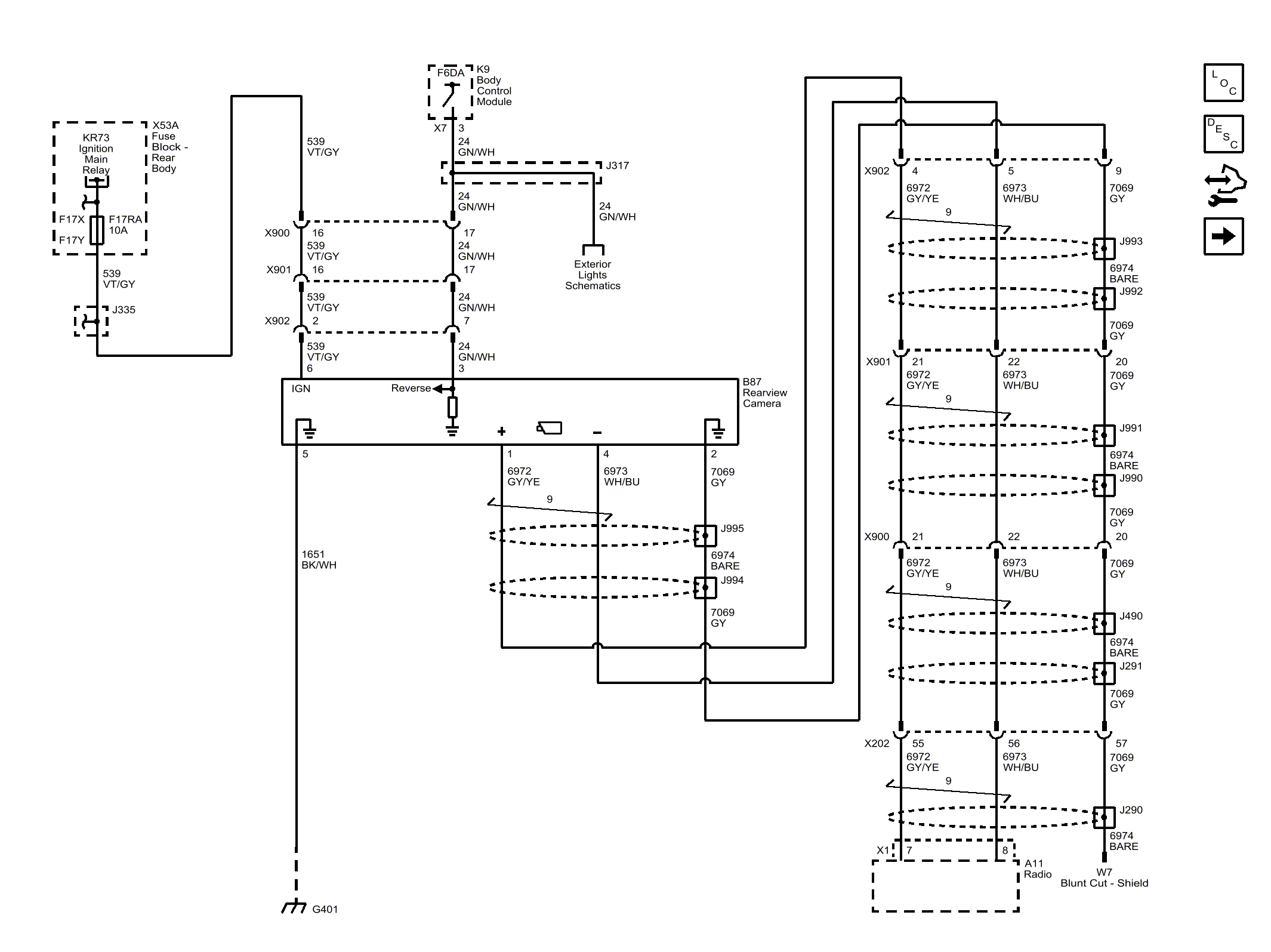

Fig 1: Rearview Camera (Trax with UVC)
Courtesy of GENERAL MOTORS COMPANY
