Engine Control Module Bracket Replacement

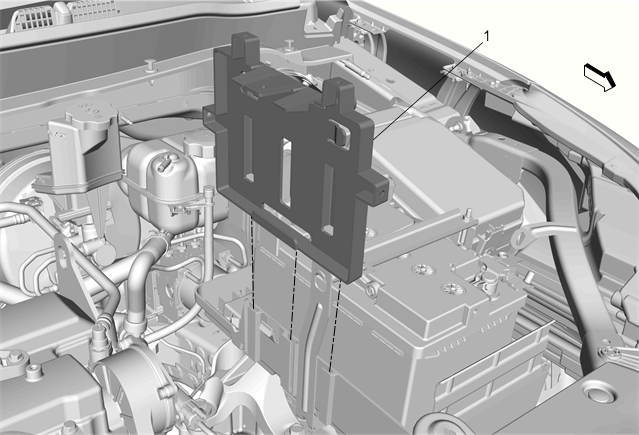

Fig 1: Engine Control Module Bracket
GM3910936Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the engine control module. Refer to Engine Control Module Replacement .
1 Engine Control Module Bracket
Procedure
Release retaining tab to remove bracket from battery tray.
