Data Communications
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

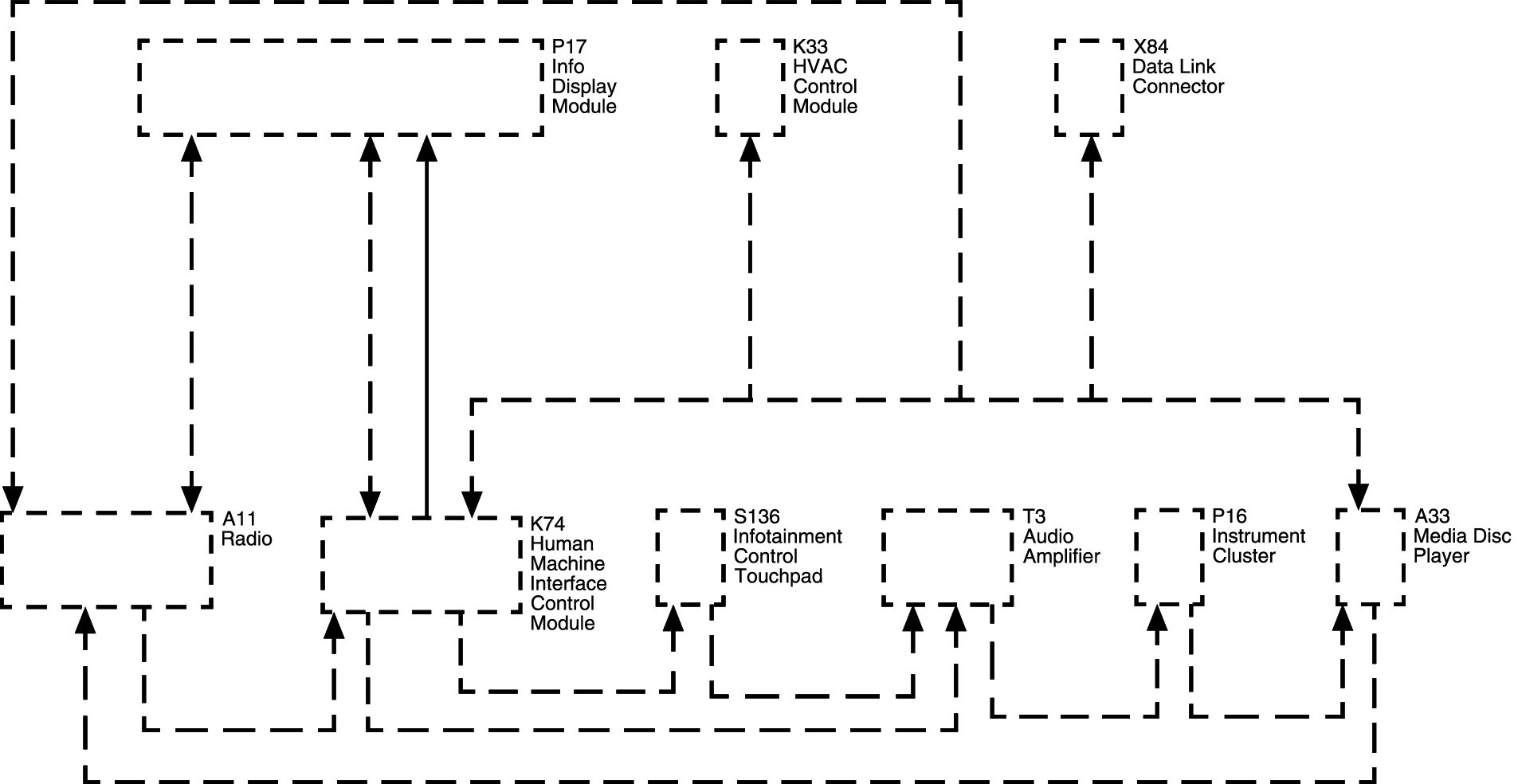

| Callout | Component Name |
|---|---|
| DJ | Serial Data - Local Interconnect Network |
| DJ | Serial Data - Local Interconnect Network |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| DK | Serial Data - MOST |
| P17 | P17 Info Display Module |
| K33 | K33 HVAC Control Module |
| X84 | X84 Data Link Connector |
| A33 | Media Disc Player |
| P16 | P16 Instrument Cluster |
| T3 | T3 Audio Amplifier |
| S136 | Infotainment Control Touchpad |
| K74 | Human Machine Interface Control Module |
| A11 | A11 Radio |
Data Communications
The infotainment system communicates with other devices on multiple serial data networks during operation. The infotainment system utilizes the Media Oriented Systems Transport (MOST) bus, Local Interconnect Network (LIN) and GMLAN to establish communications. For additional information refer to Data Link Communications Description and Operation
