Human Machine Interface Control Module Replacement
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedure
- Remove the body hinge pillar garnish molding - right side. Refer to Body Hinge Pillar Garnish Molding Replacement
.
- Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
- Remove radio bracket fasteners. Refer to Radio Bracket Replacement .
|
| 1 |

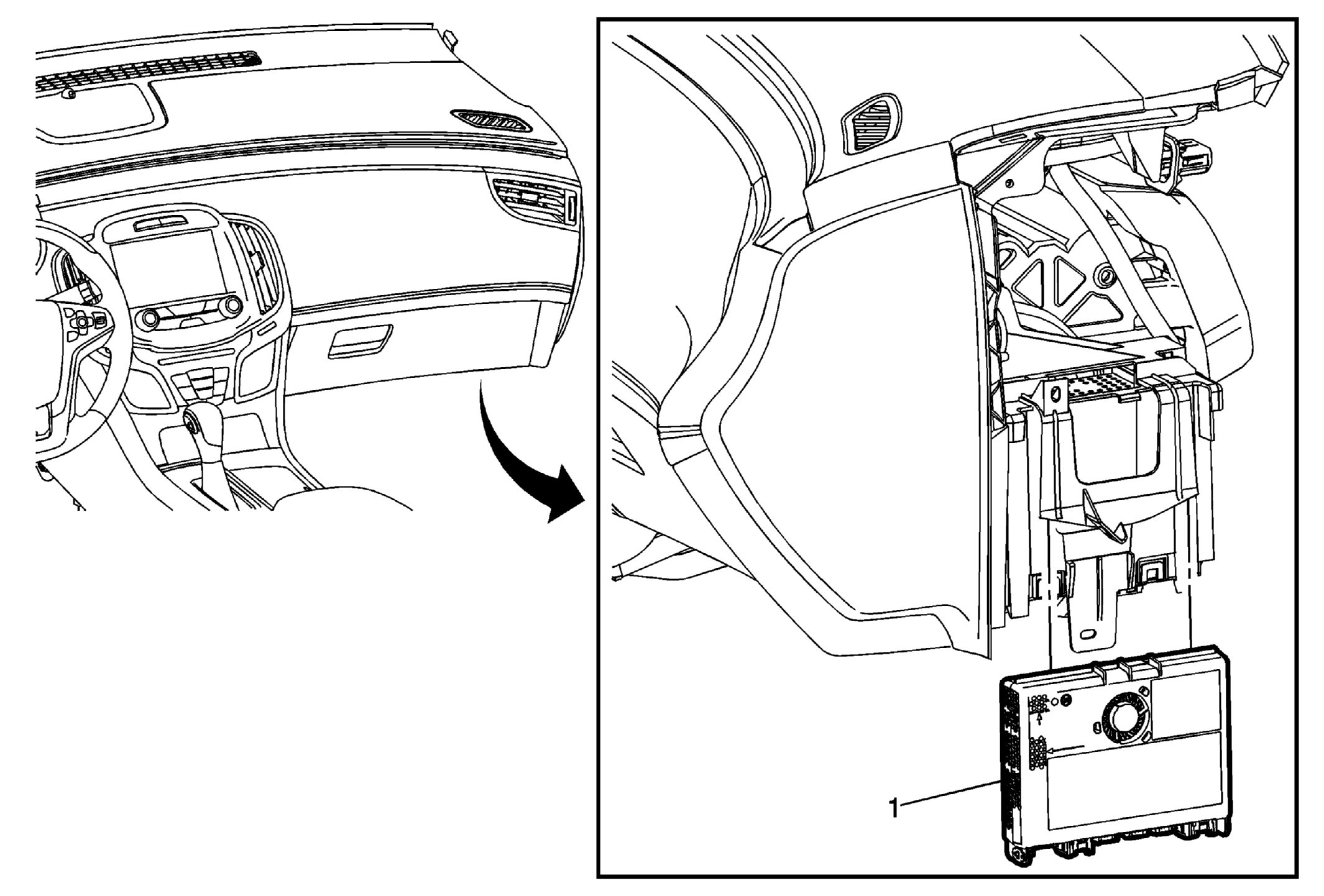

Human Machine Interface Control Module Procedure
- Reposition the carpet as needed to allow enough clearance for the module to be removed.
NOTE:
Compressing the dash panel inner insulator will be necessary to aid in the removal.
- Disconnect the electrical connections.
- Slide module downward to release from bracket.
- Refer to Control Module References
for programming and setup information.
|
