Radio Control Assembly Replacement
WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

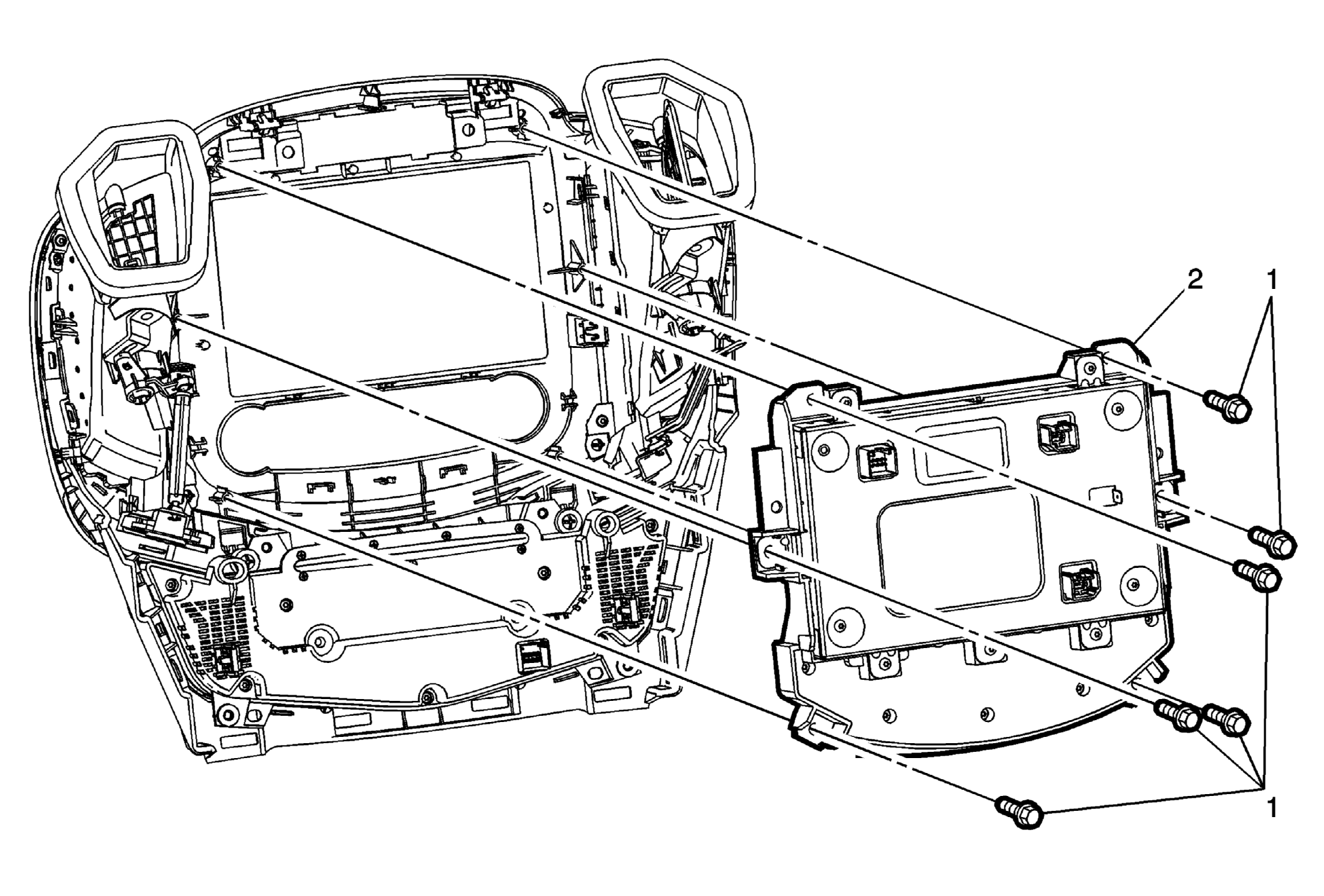

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement . |
|
| 1 | Radio Control Assembly Fasteners (Qty: 6)
CAUTION:
Refer to Fastener Caution . |
| 2 | Radio Control Assembly Procedure For programming and set up, refer to Control Module References . |
