Section 56 (Secondary And Configurable Customer Control System)
>>
Schematic Wiring Diagrams
>>
Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Steering Wheel Controls
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Steering Wheel Controls
WARNING:
This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

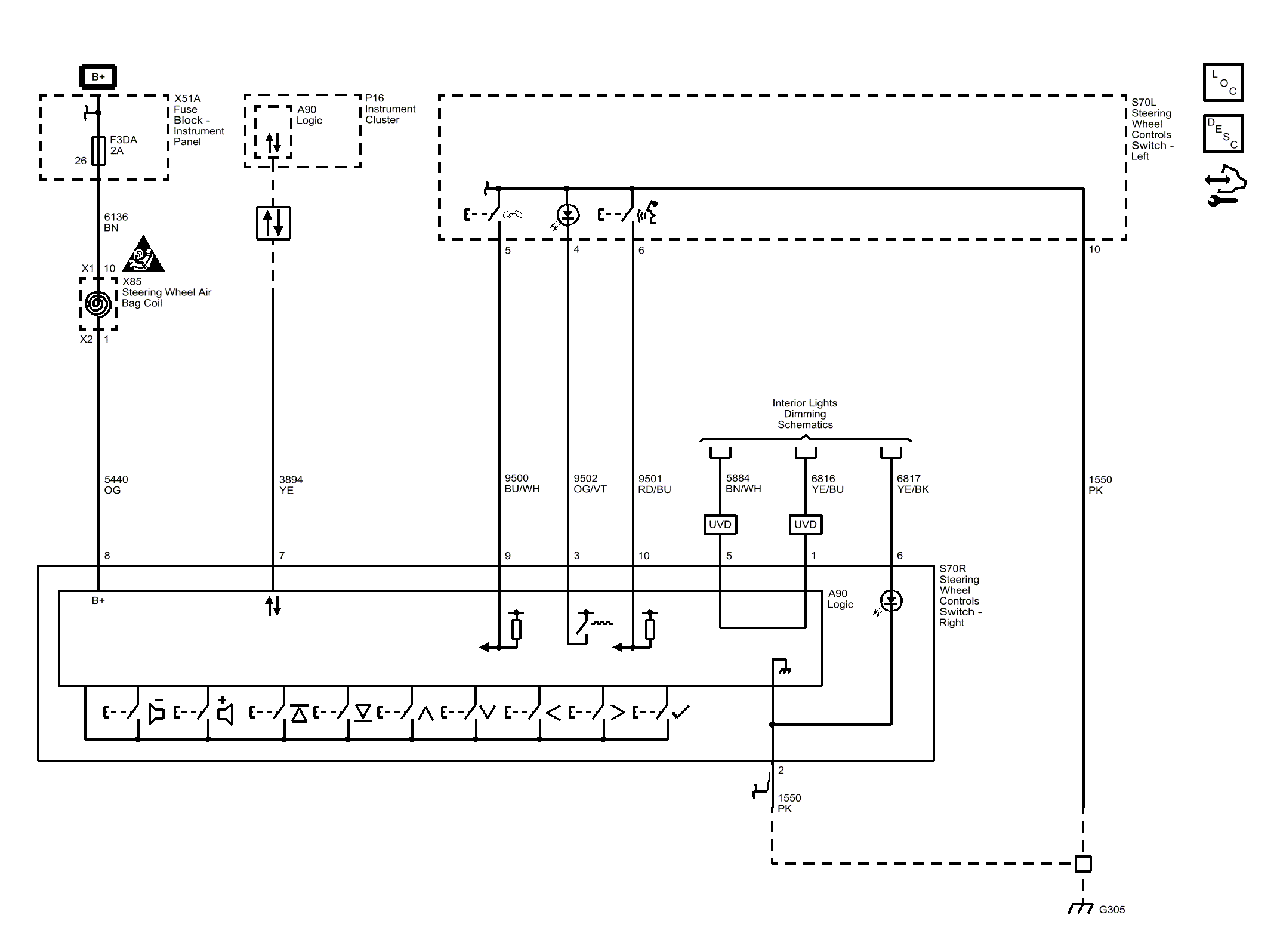

Fig 1: Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
