Left Front of Passenger Compartment Components

Left Front of Passenger Compartment Components

Items
1. F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left
2. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2
3. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1
4. B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front
5. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver

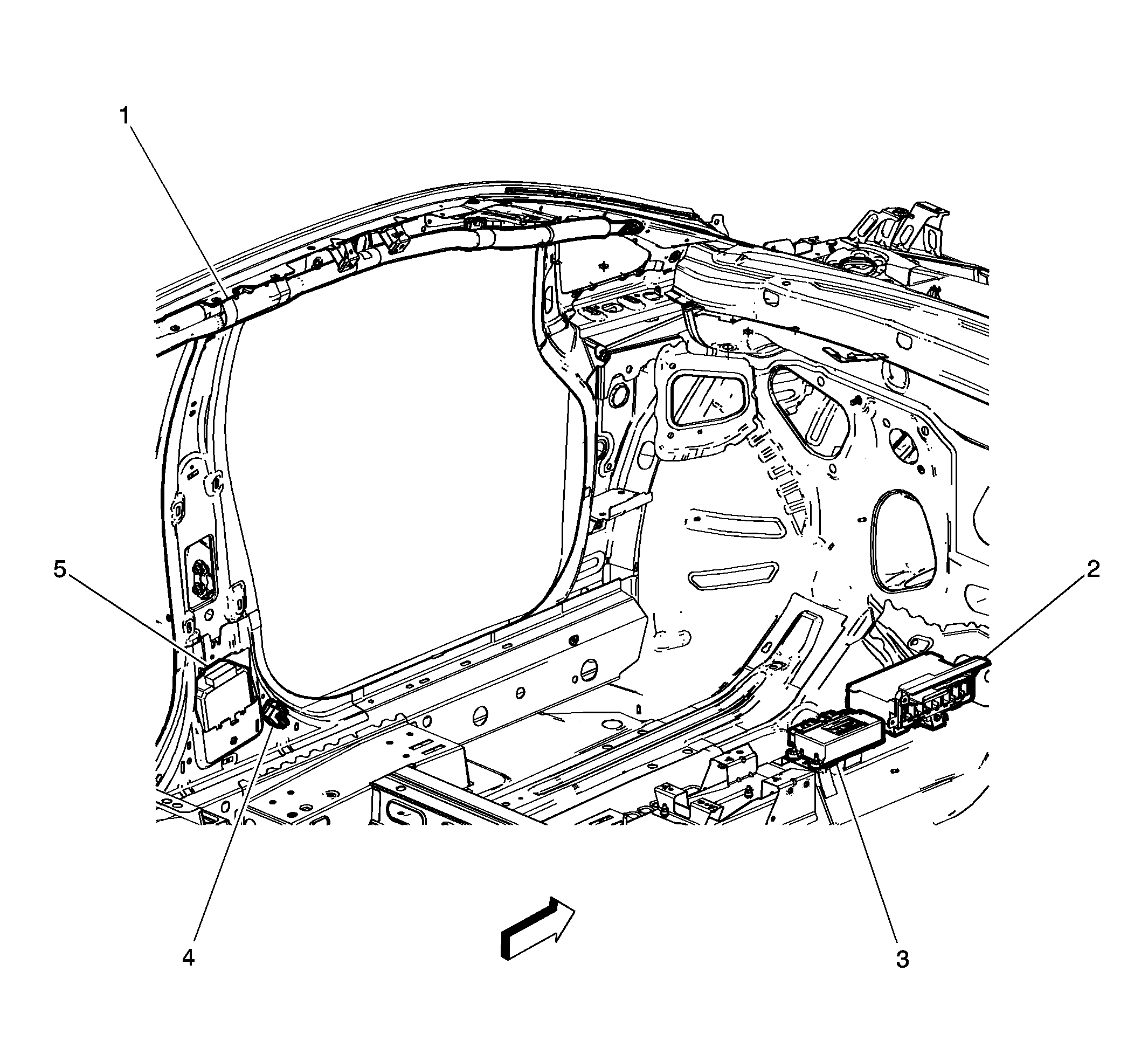

Fig 1: Left Front of Passenger Compartment Components
GM3337961Courtesy of GENERAL MOTORS COMPANY
