Power, Ground, Serial Data, and Audio Input (Buick)

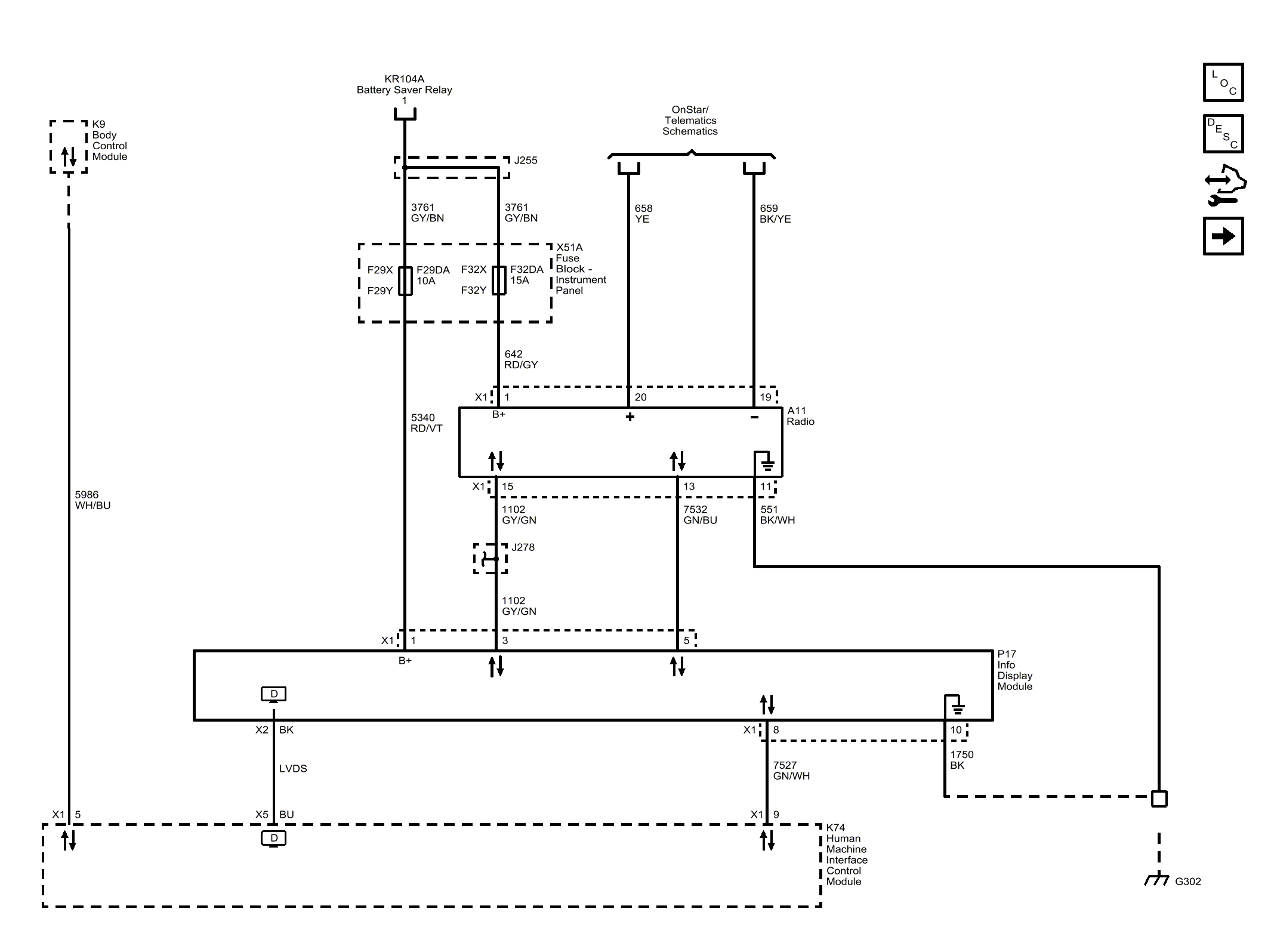

Fig 1: Power, Ground, Serial Data, and Audio Input (Buick)
GM4376676Courtesy of GENERAL MOTORS COMPANY
