Power, Ground, Serial Data, Antenna, and Audio/Video Inputs (Chevrolet without IOA)

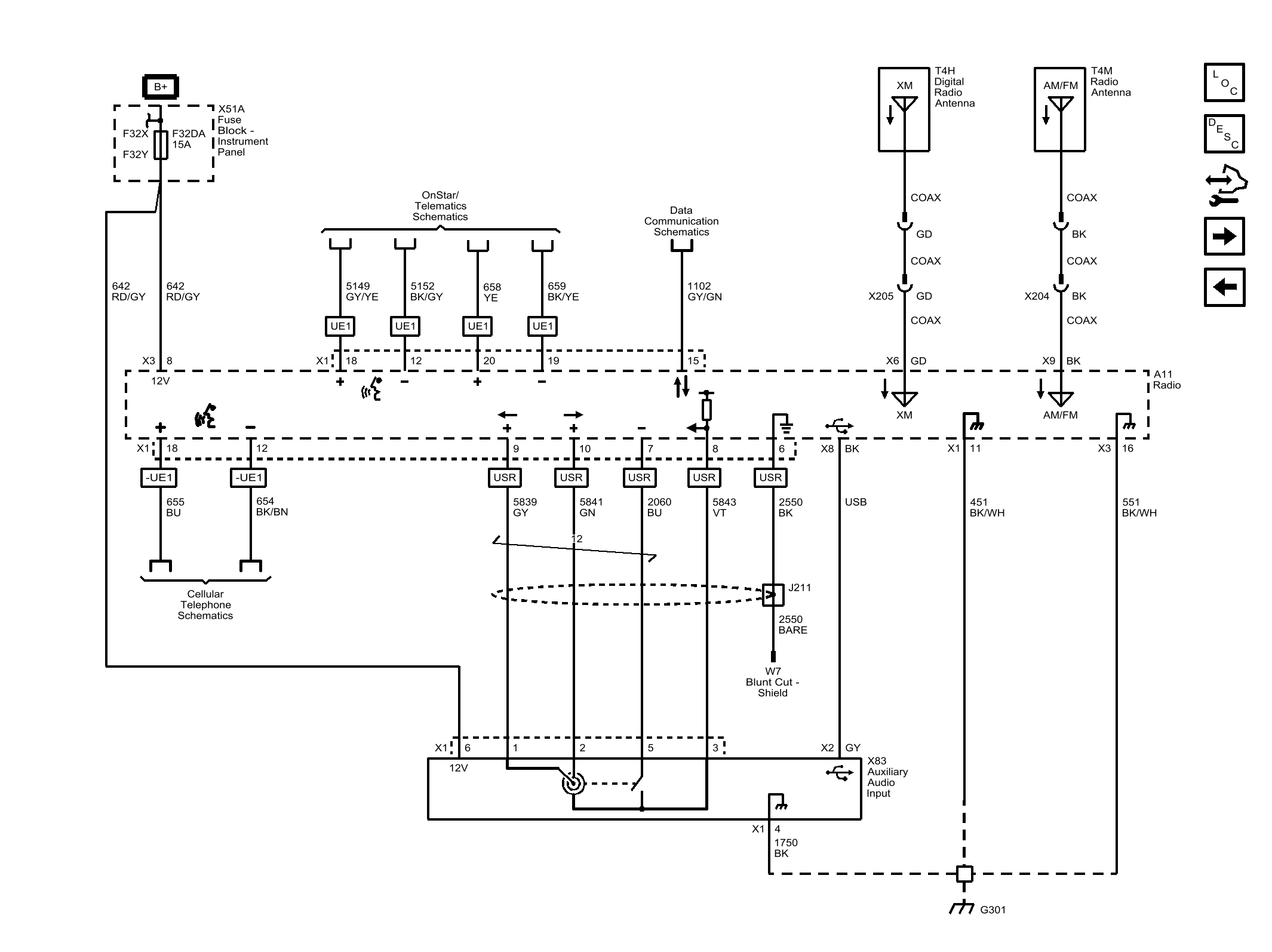

Fig 1: Power, Ground, Serial Data, Antenna, and Audio/Video Inputs (Chevrolet without IOA)
GM4476682Courtesy of GENERAL MOTORS COMPANY


Fig 1: Power, Ground, Serial Data, Antenna, and Audio/Video Inputs (Chevrolet without IOA)
GM4754685Courtesy of GENERAL MOTORS COMPANY
