Theft Deterrent Module Replacement (Chevrolet, With BTM)

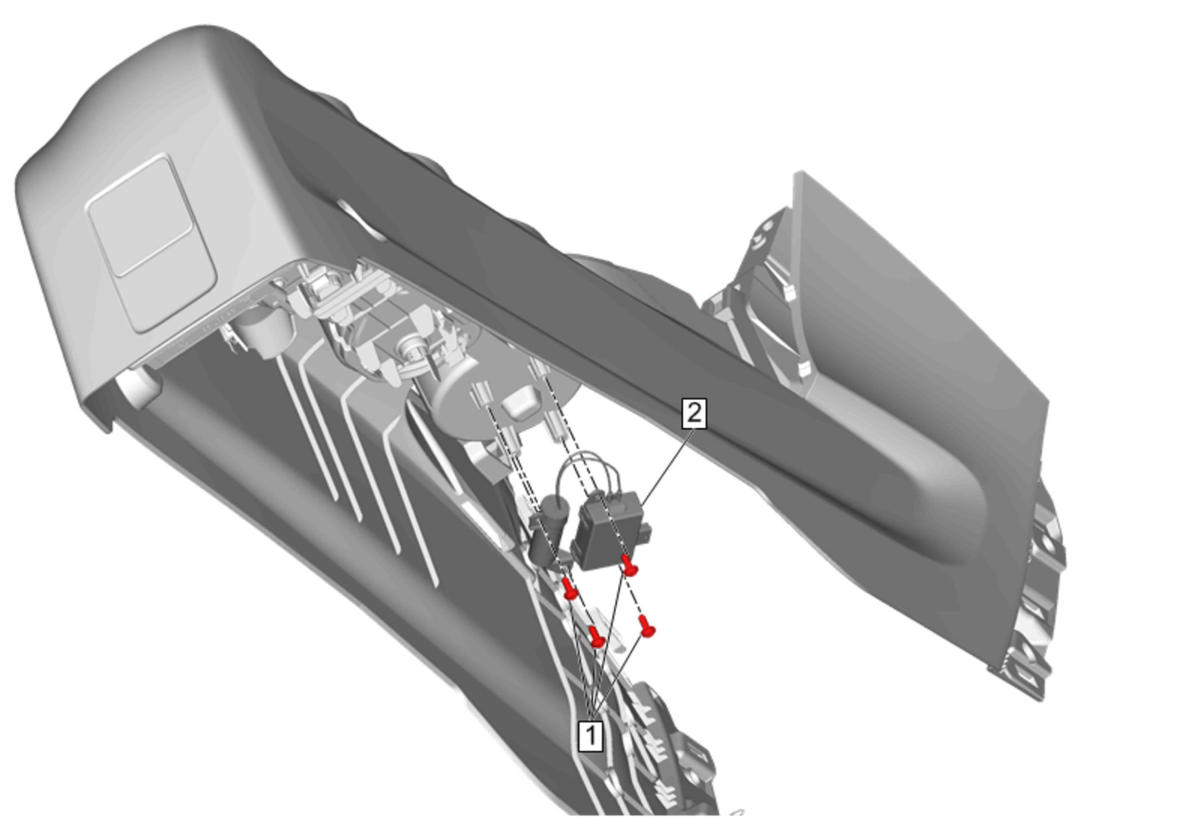

Fig 1: Theft Deterrent Module (Chevrolet, With BTM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console. Refer to Front Floor Console Replacement (Chevrolet)
1	Theft Deterrent Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 1.5 N.m (13 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector.
