Steering Angle Sensor Replacement

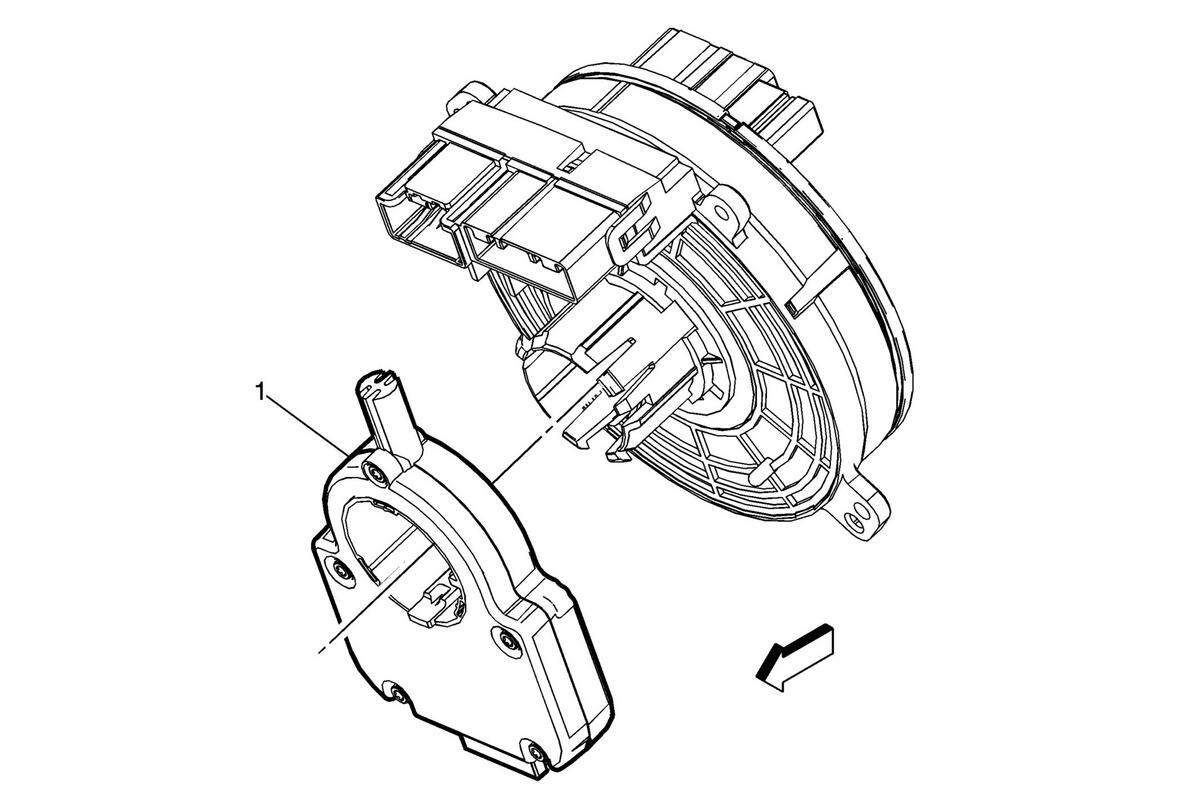

Fig 1: View Of Steering Angle Sensor
GM2018866Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Wheel Airbag Coil Replacement (Buick)Steering Wheel Airbag Coil Replacement (Chevrolet, Without BTM)Steering Wheel Airbag Coil Replacement (Chevrolet, With BTM)
1 Steering Angle Sensor

Procedure

  1. Press in the retaining tabs on the steering wheel airbag coil and remove the steering angle sensor.
  2. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
