Removal Procedure

Remove the battery negative cable. Refer to Battery Negative Cable Replacement (without KL9) Battery Negative Cable Replacement (with KL9) .

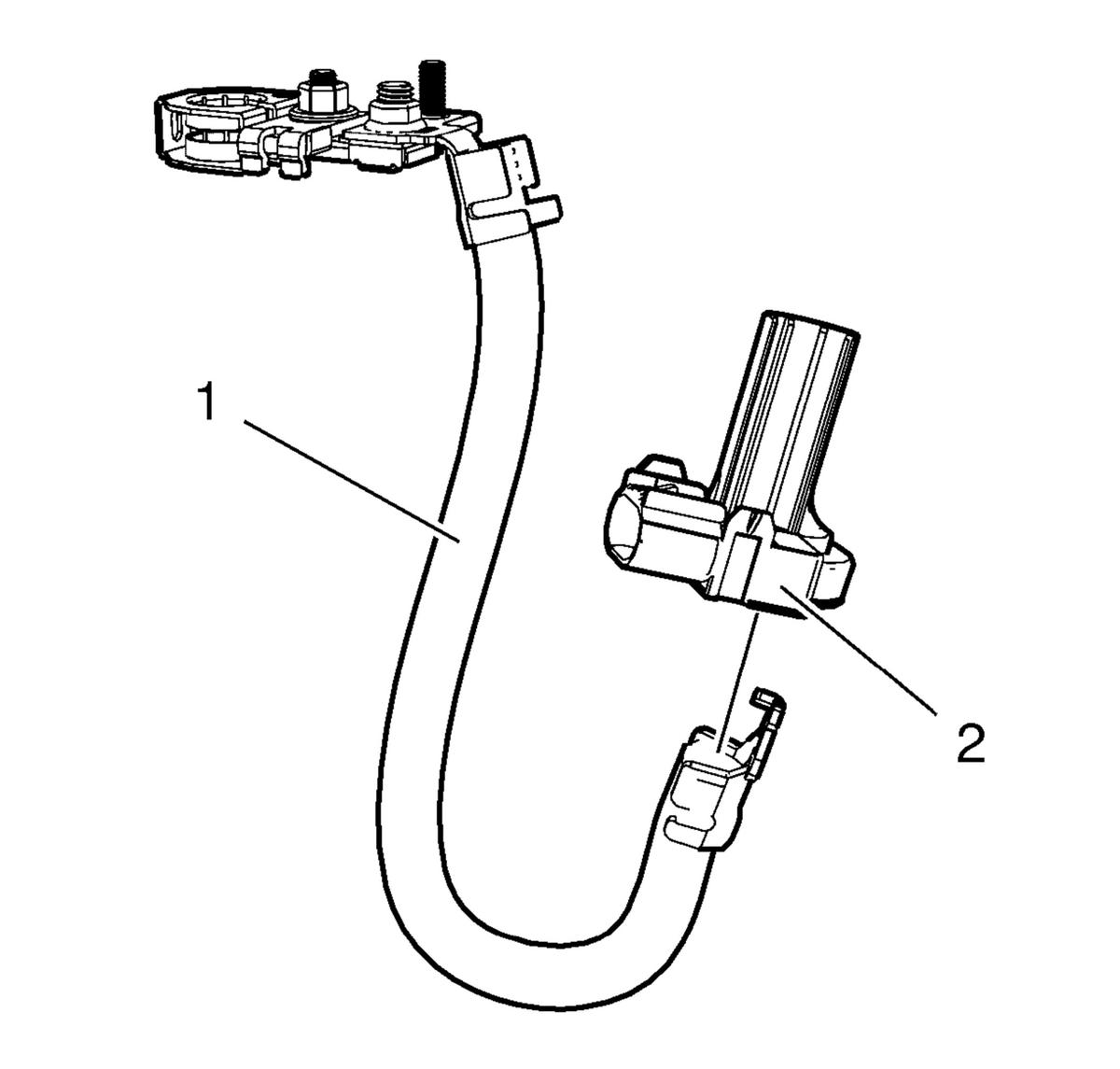

Fig 1: Battery Negative Cable & Current Sensor

Courtesy of GENERAL MOTORS COMPANY

Remove the current sensor (2) from the negative battery cable (1).
