Steering Gear Pipe Replacement

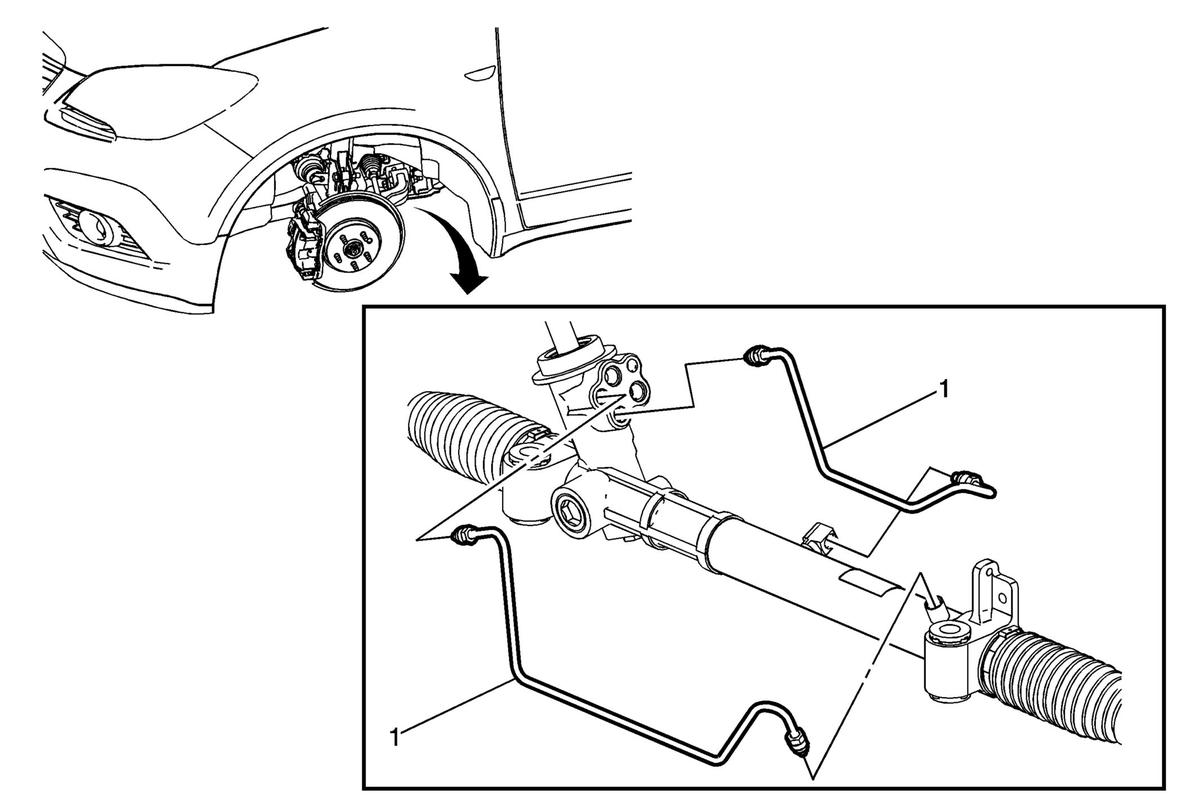

Fig 1: Steering Gear Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Steering Gear Pipe (Qty: 2) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 13 N.m (115 lb in)
