Rearview Camera (Buick with UVC)

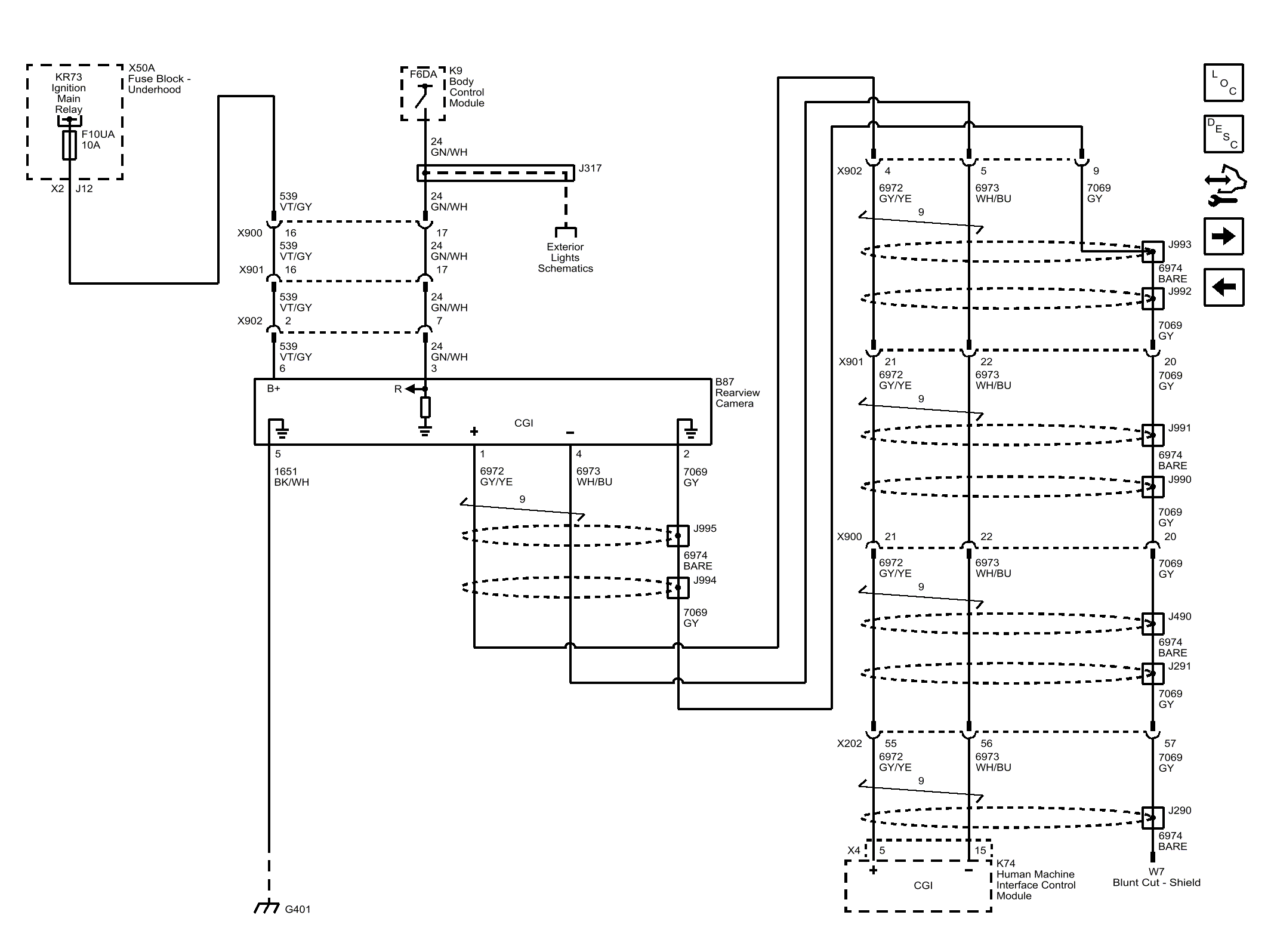

Fig 1: Rearview Camera (Buick with UVC)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
