Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

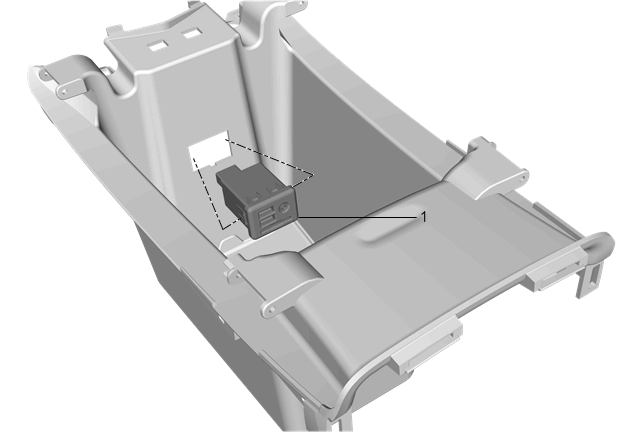

Fig 1: Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Armrest Replacement
1	Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Disconnect the electrical connector. Use a flat bladed plastic tool to remove.

Callout

Component Name

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle

Procedure
