Radio Power, Ground, Data Communications, Antennas, and Functions

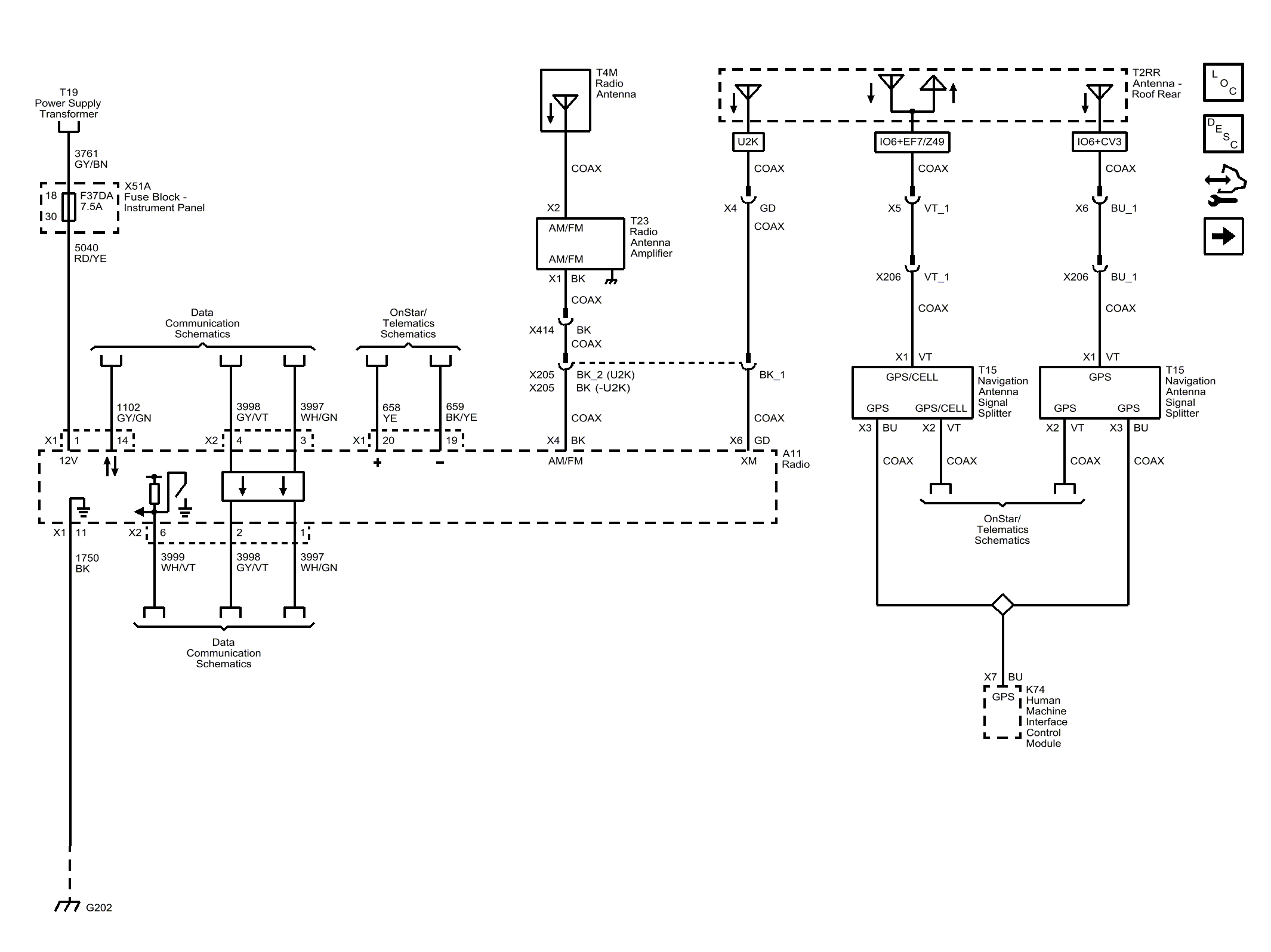

Fig 1: Radio Power, Ground, Data Communications, Antennas, and Functions
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
