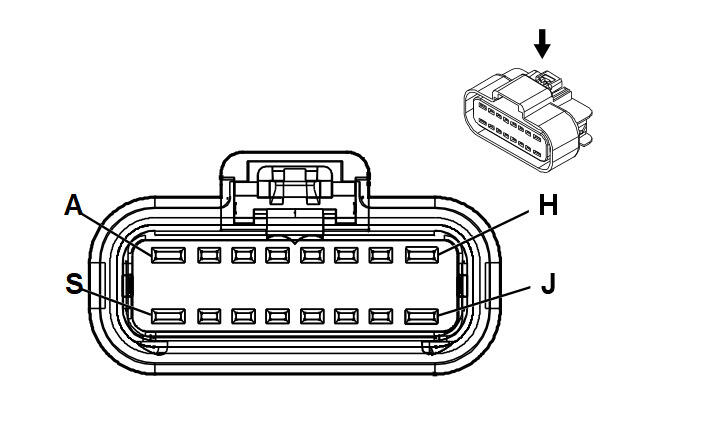

K47 Rear Differential Clutch Control Module X2 (F46)
|
|
Connector Part Information
- Harness Type: Rear Differential
- OEM Connector: 15326084
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 150, 280 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575408 |
J-35616-4A (PU) |
J-38125-553 |
| II |
Not Required |
J-35616-2A (GY) |
J-38125-553 |
| III |
13576356 |
J-35616-4A (PU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
2 |
RD/BK |
- |
Differential Clutch Pump Motor V-Phase |
I |
- |
| B |
0.5 |
BU/WH |
- |
Differential Clutch Pump Motor Hall-Effect Sensor Signal 1 |
II |
- |
| C |
0.5 |
BU/OG |
- |
Differential Clutch Pump Motor Hall-Effect Sensor Signal 2 |
II |
- |
| D |
0.5 |
BU |
- |
Differential Clutch Pump Motor Hall-Effect Sensor Signal 3 |
II |
- |
| E |
0.5 |
PU/WH |
- |
Differential Clutch Pump Motor Hall-Effect Sensor Supply Voltage |
II |
- |
| F |
0.5 |
PU |
- |
Differential Clutch Pump Motor Hall-Effect Sensor Low Voltage |
II |
- |
| G |
- |
- |
- |
Not Occupied |
- |
- |
| H |
0.5 |
RD |
- |
Differential Clutch Pump Motor W-Phase |
II |
- |
| J |
0.5 |
RD/WH |
- |
Differential Clutch Pump Motor U-Phase |
II |
- |
| K-O |
- |
- |
- |
Not Occupied |
- |
- |
| P |
0.5 |
WH/BK |
- |
Differential Clutch Solenoid Valve 2 Low Control Signal |
II |
- |
| R |
0.5 |
WH/OG |
- |
Differential Clutch Solenoid Valve 1 Low Control Signal |
II |
- |
| S |
0.5 |
WH |
- |
Differential Clutch Solenoid Valve High Control Signal |
II |
- |
