Forward Collision Alert and Lane Assist (UGN)

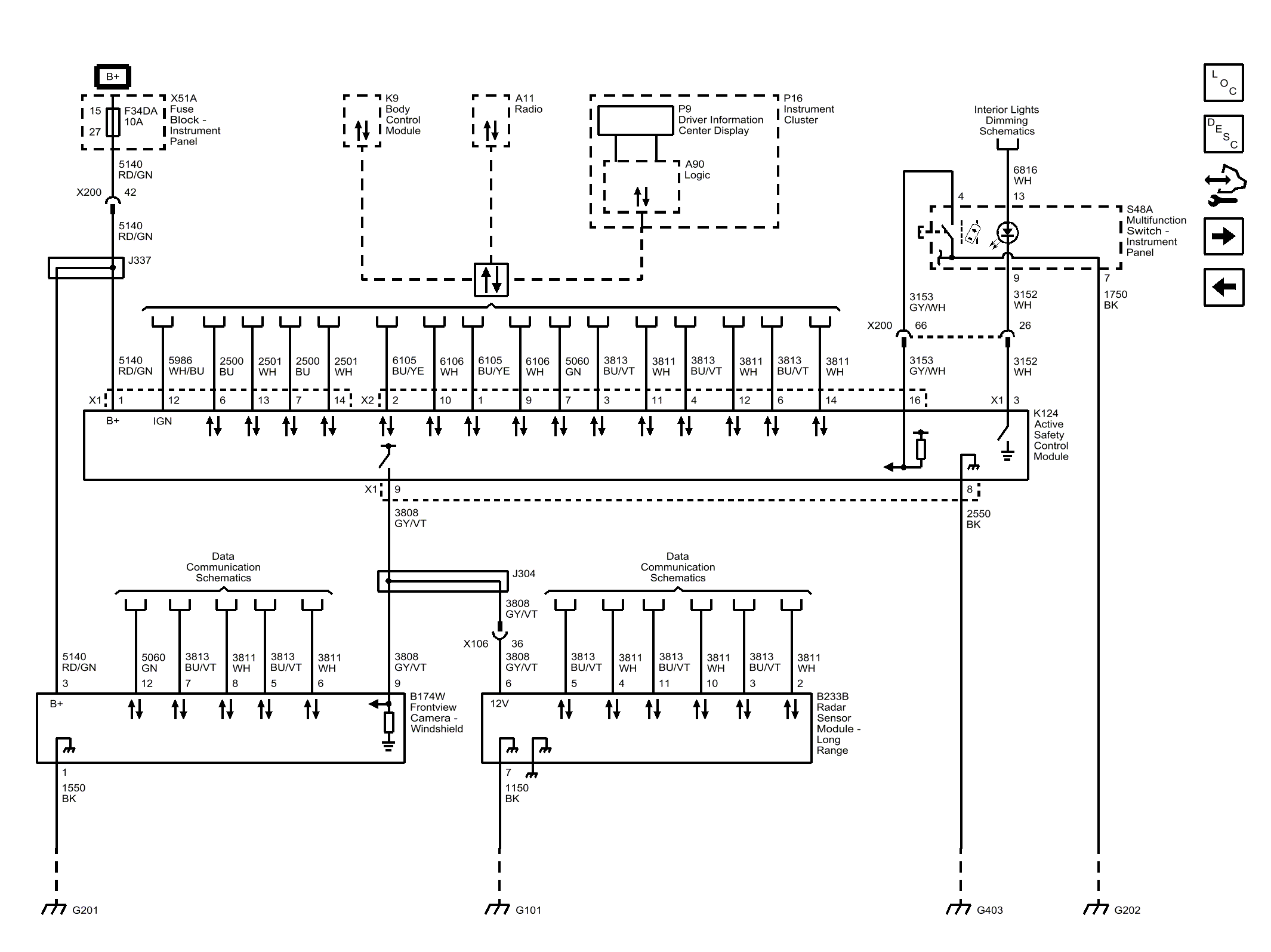

Fig 1: Forward Collision Alert and Lane Assist (UGN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
