K19 Suspension Control Module

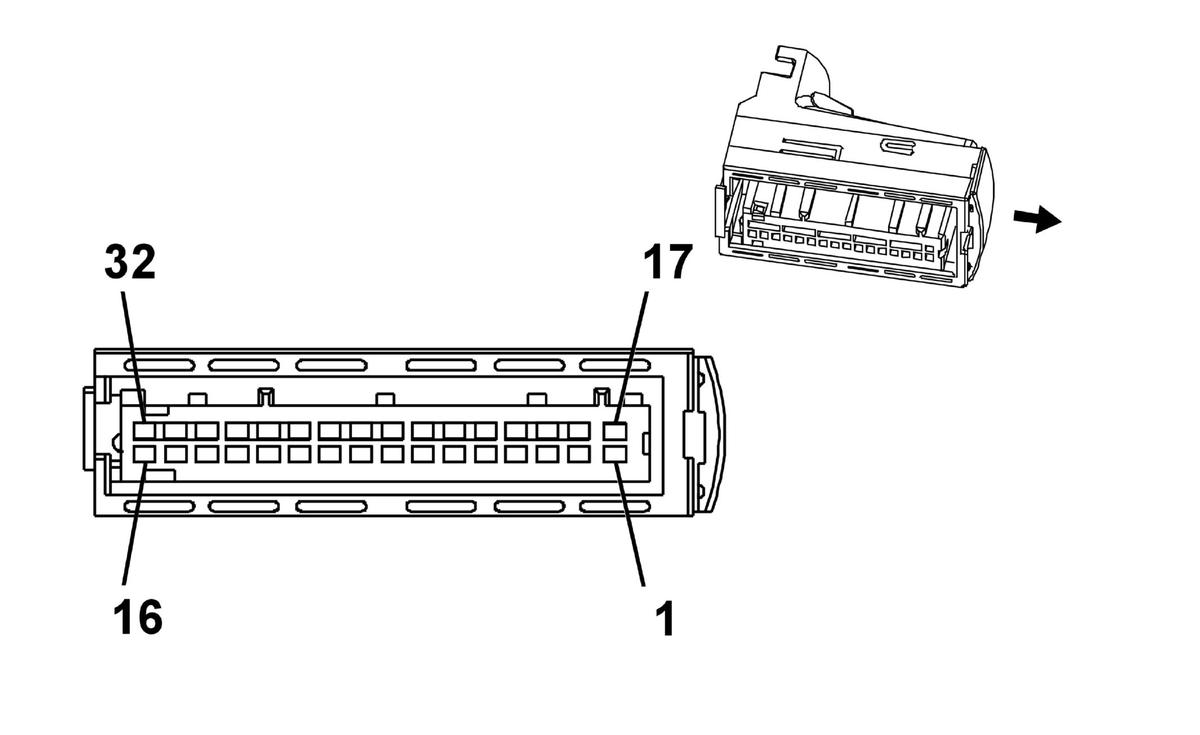

GM2039632
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 0-1241724-2
  • Service Connector: 13576557
  • Description: 32-Way F 0.64 Micro-Quadlock Series (BU)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575859 J-35616-64B (LT BU) J-38125-12A Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 RD/VT 1940 Battery Positive Voltage I -
2 0.5 GN/GY 1119 Right Rear Damping Servo Control I -
3 0.5 BN/GN 1118 Right Rear Damping Servo Control I -
4 0.5 BU/GY 1114 Left Rear Damping Servo Control I -
5 0.5 GN/VT 1115 Left Rear Damping Servo Control I -
6 0.35 WH/BU 5986 Serial Data Communication Enable I -
7 0.5 BN/RD 1819 Right Front Wheel Accelerometer 5V Reference I -
8 0.5 BK/GN 1105 Right Front Wheel Damping Accelerometer Low Reference I -
9 0.5 YE/BN 1103 Left Rear Wheel Damping Accelerometer Signal I -
10 0.5 WH 1100 Left Front Wheel Damping Accelerometer Signal I -
11 0.5 WH 1106 Right Front Wheel Damping Accelerometer Signal I -
12 0.5 YE/RD 1817 Left Front Wheel Accelerometer 5V Reference I -
13 0.5 BN 1113 Left Front Damping Servo Control I -
14 0.5 BK 1107 Left Front Damping Servo Control I -
15 0.5 BK 1116 Right Front Damping Servo Control I -
16 0.5 BN 1117 Right Front Damping Servo Control I -
17 - - - Not Occupied - -
18 0.75 BK 2350 Ground I -
19 - - - Not Occupied - -
20 0.5 BK/BN 1099 Left Front Wheel Damping Accelerometer Low Reference I -
21 0.5 BK/VT 1833 Left Rear Wheel Damping Accelerometer Low Reference I -
22 0.35 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
23 0.35 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
24 0.35 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
25 0.35 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
26 - 27 - - - Not Occupied - -
28 0.35 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
29 0.35 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
30 0.35 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
31 0.35 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
32 0.5 VT/RD 1818 Left Rear Wheel Accelerometer 5V Reference I -
