Communication Interface Module Bracket Replacement

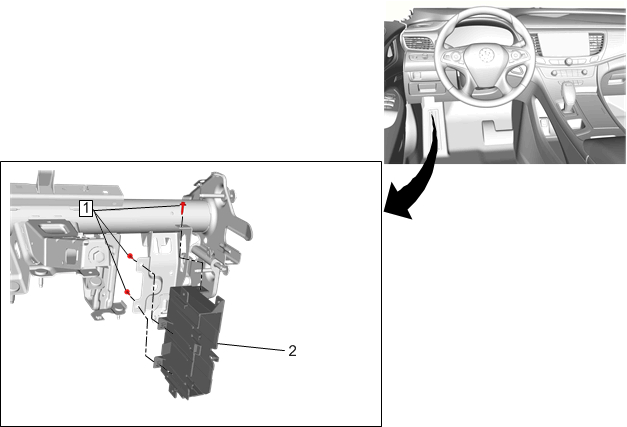

Fig 1: Communication Interface Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Center Air Outlet Duct Replacement Instrument Panel Lower Trim Panel Replacement
1	Communication Interface Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure Disconnect the 2 harness retainers. Disconnect the electrical connectors. Transfer components as necessary. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedures

Communication Interface Module Bracket Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Bracket

Procedure
