Windshield Wiper System Module Replacement

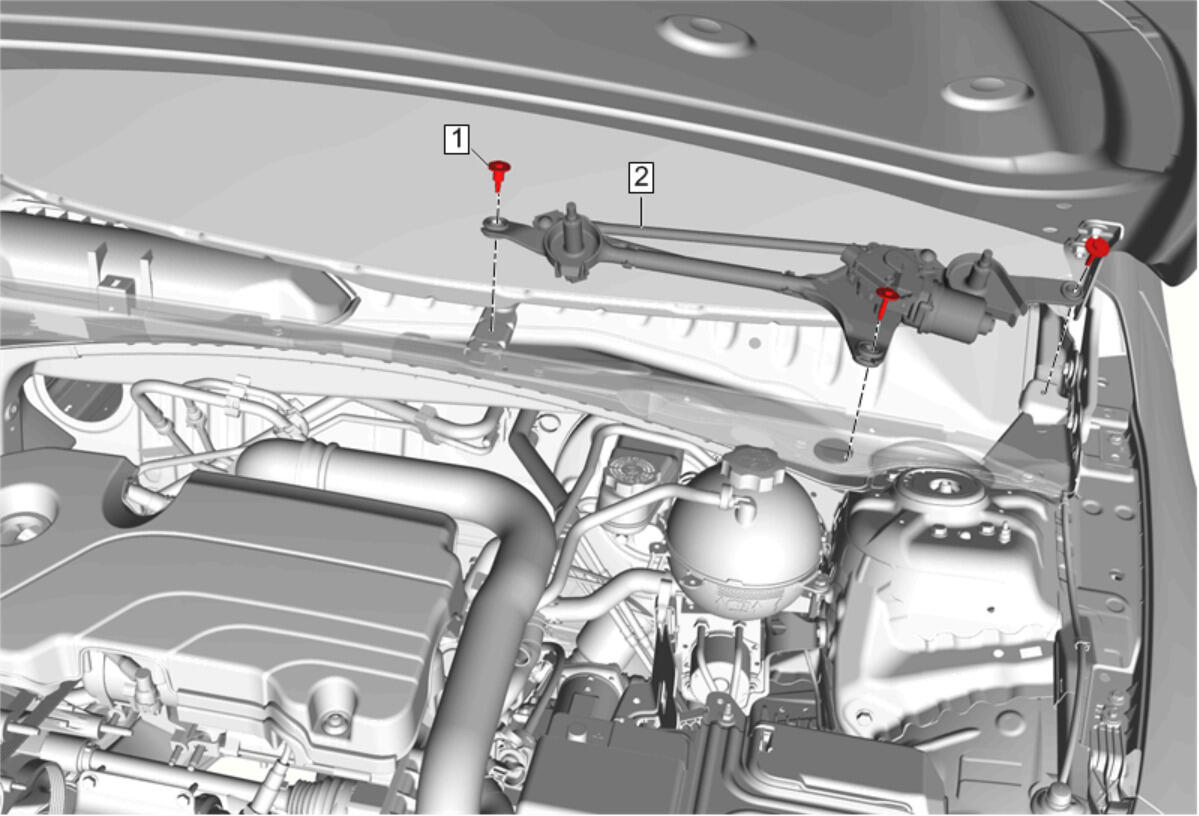

Fig 1: Windshield Wiper Transmission
GM4212560Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Inlet Grille Panel Replacement
1 Windshield Wiper System Module Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (71 lb in)
2 Windshield Wiper System Module

Procedure

  1. Slide the windshield wiper transmission inboard to release the grommet from the plenum.
  2. Disconnect the electrical connector.
  3. Remove the windshield wiper transmission from the vehicle.
  4. Transfer components as necessary.
