T6 Power Inverter Module X1 (CZ2)

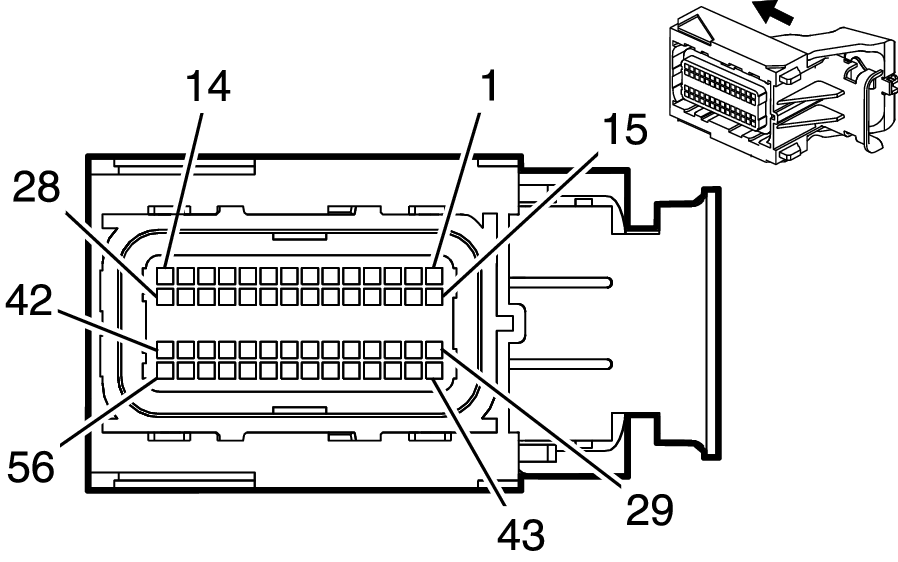

GM4114799
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13946578
  • Service Connector: 19352787
  • Description: 56-Way F MX123 34576 Series (BK with GY Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575812 J-35616-64B (LT BU) J-38125-213 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 BK/WH 151 Signal Ground I -
2 0.75 RD/GN 1840 Battery Positive Voltage I -
3 0.5 VT/BK 2139 Run/Crank Ignition 1 Voltage I -
4 0.5 BU/WH 3977 Accessory Wakeup Serial Data 2 I -
5 - - - Not Occupied - -
6 0.5 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
7 0.5 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
8 0.5 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
9 0.5 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
10 - 19 - - - Not Occupied - -
20 0.5 BU/YE 6105 High Speed GMLAN Serial Data (+) 2 I -
21 0.5 WH 6106 High Speed GMLAN Serial Data (-) 2 I -
22 - 28 - - - Not Occupied - -
29 0.5 VT/BU 6091 Crankshaft Position Sensor Replicated Signal I -
30 - - - Not Occupied - -
31 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
32 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
33 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+)3 I -
34 0.5 WH 7494 High Speed GMLAN Serial Data (-)3 I -
35 - 44 - - - Not Occupied - -
45 0.5 BU 2500 High Speed GMLAN Serial Data (+) 1 I -
46 0.5 WH 2501 High Speed GMLAN Serial Data (-) 1 I -
47 0.5 BU/BK 7493 High Speed GMLAN Serial Data (+)3 I -
48 0.5 WH 7494 High Speed GMLAN Serial Data (-)3 I -
49 - - - Not Occupied - -
50 0.75 RD/WH 2040 Battery Positive Voltage I -
51 0.75 BK/WH 151 Signal Ground I -
52 - 56 - - - Not Occupied - -
