Bottom of the Floor Console Components

Bottom of the Floor Console Components

Items
1. K89 Immobilizer Control Module K89 Immobilizer Control Module
2. T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear

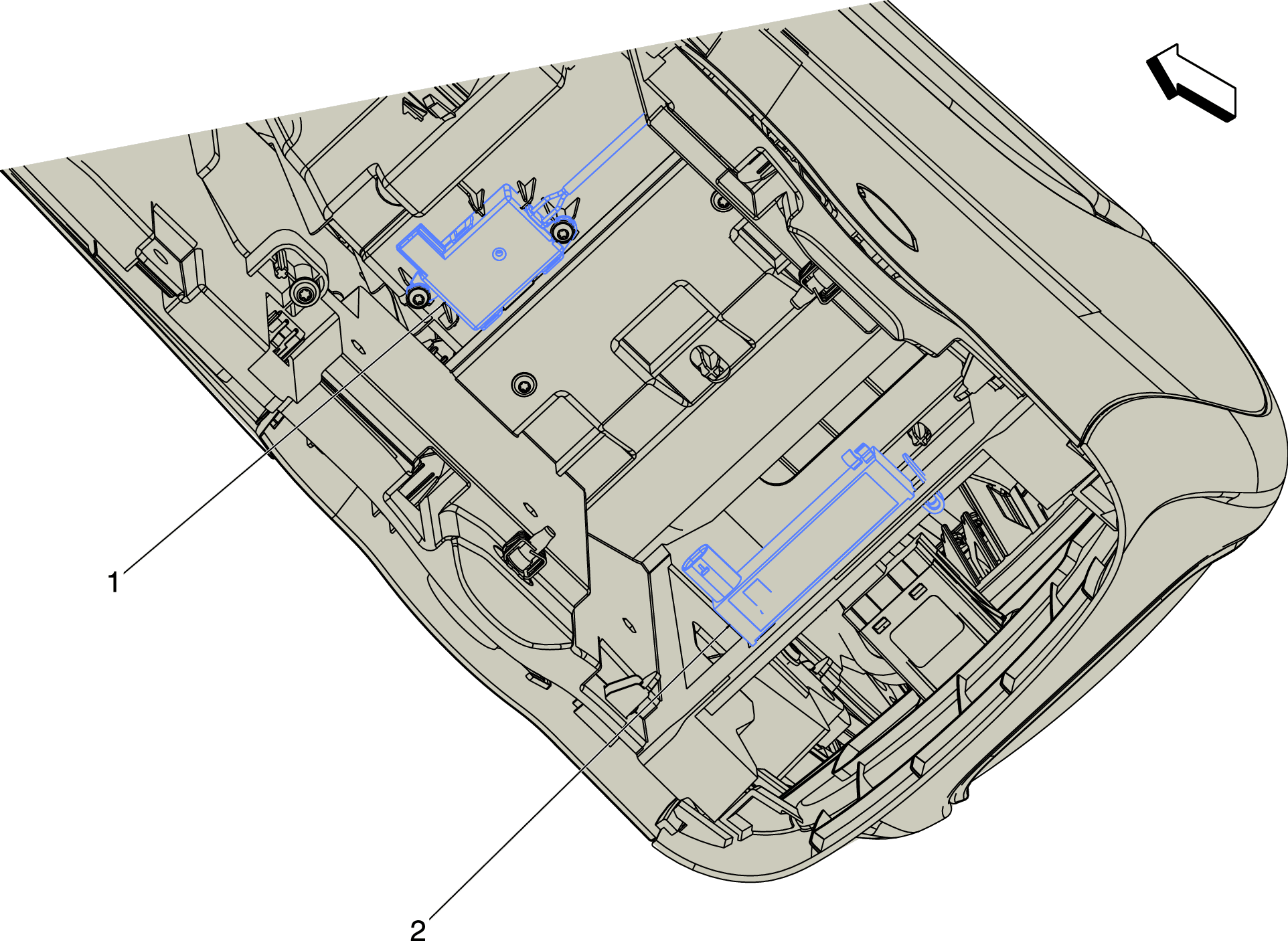

Fig 1: Bottom of the Floor Console Components
GM4319226Courtesy of GENERAL MOTORS COMPANY
