Top Center of the Windshield Components

Top Center of the Windshield Components

Items
1. B177 Rain/Ambient Light Sensor Module (CE1) B177 Rain/Ambient Light Sensor Module (CE1)
2. B174 Frontview Camera (UVC) B174 Frontview Camera X1 (LFV)B174 Frontview Camera X1 (LGX)B174 Frontview Camera X1 (LKN)B174 Frontview Camera X1 (LTG)B174 Frontview Camera X1 (LTG+AQH)
3. A10 Inside Rearview Mirror A10 Inside Rearview Mirror

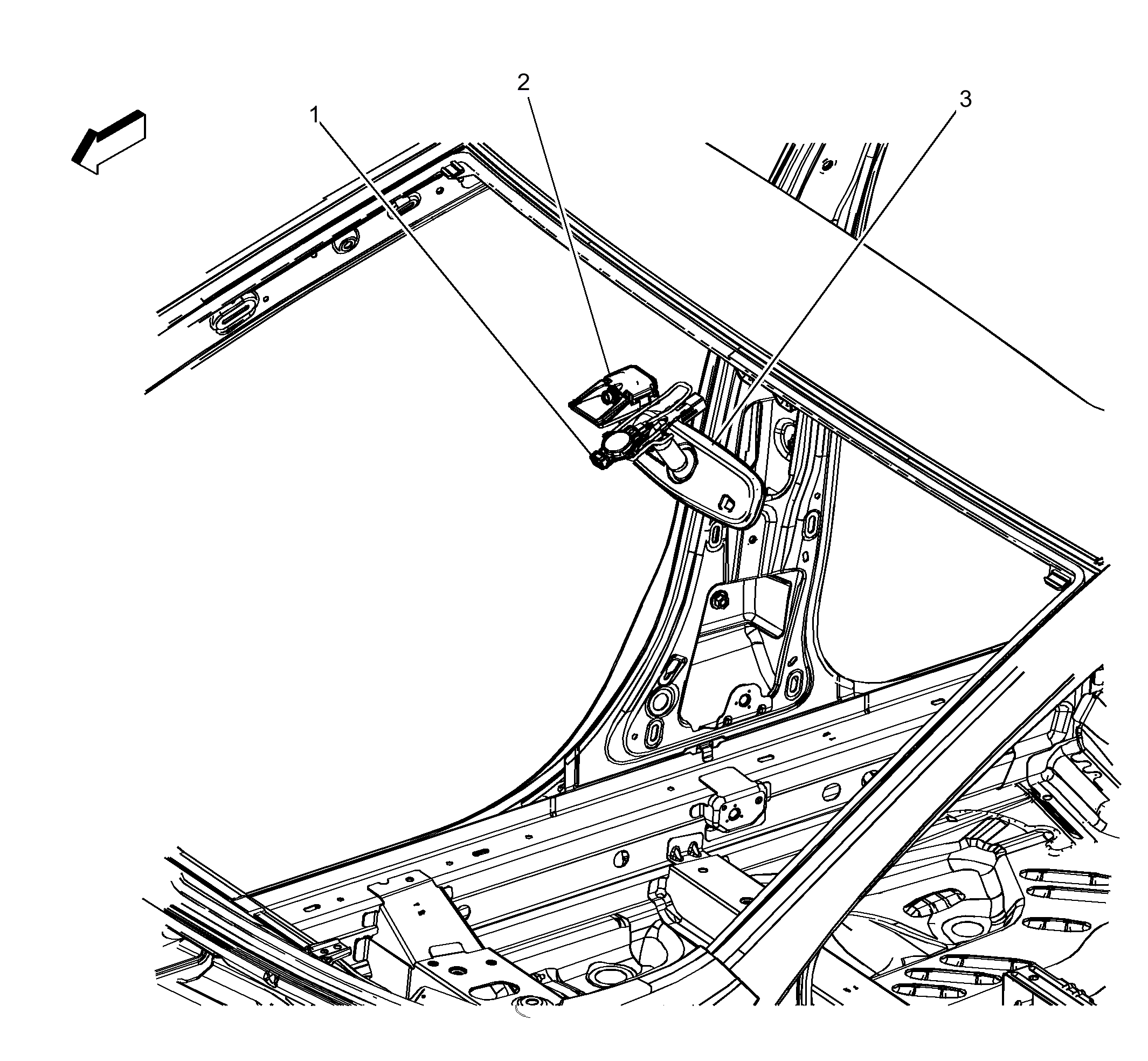

Fig 1: Top Center of the Windshield Components
GM4319220Courtesy of GENERAL MOTORS COMPANY
