Hybrid/EV Electronics Cooling

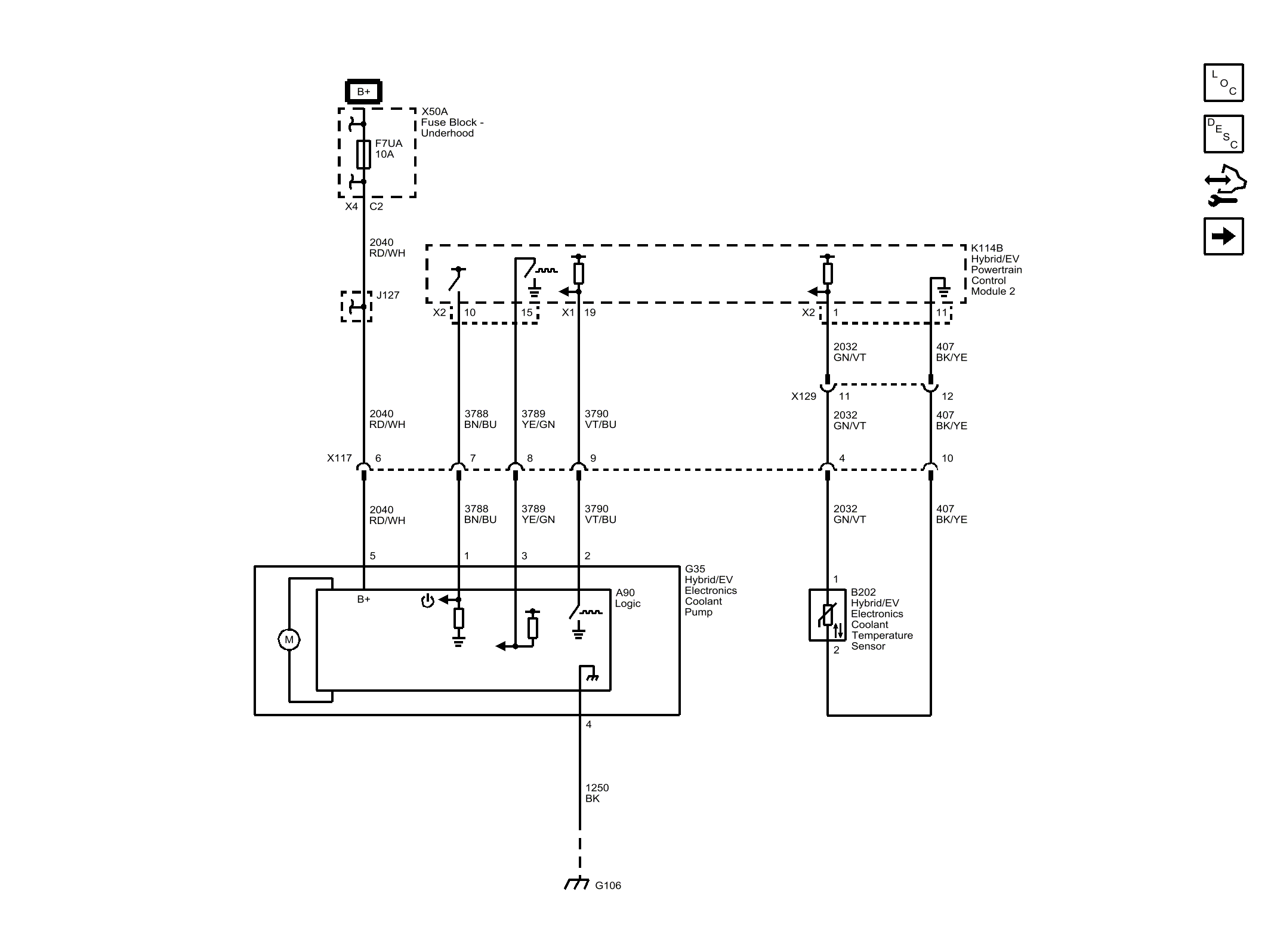

Fig 1: Hybrid/EV Electronics Cooling
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
