Front View Camera Replacement

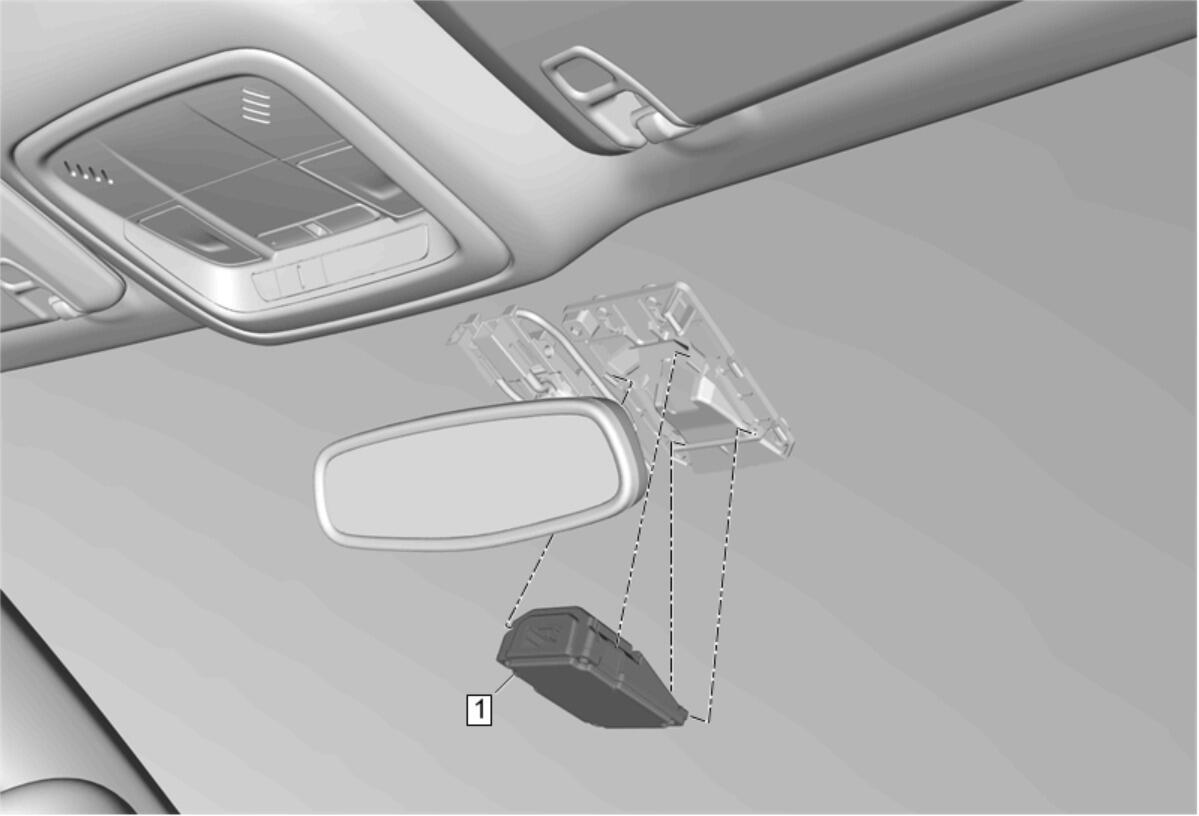

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Inside Rearview Mirror Wiring Harness Cover Replacement (With UE4)Inside Rearview Mirror Wiring Harness Cover Replacement (Without UE4)
1	Front View Camera Procedure Gently depress top center tabs on bracket to release camera. Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Front View Camera

Procedure
