Park Assist - Power, Ground, Serial Data, and Control (UD7/UFQ)

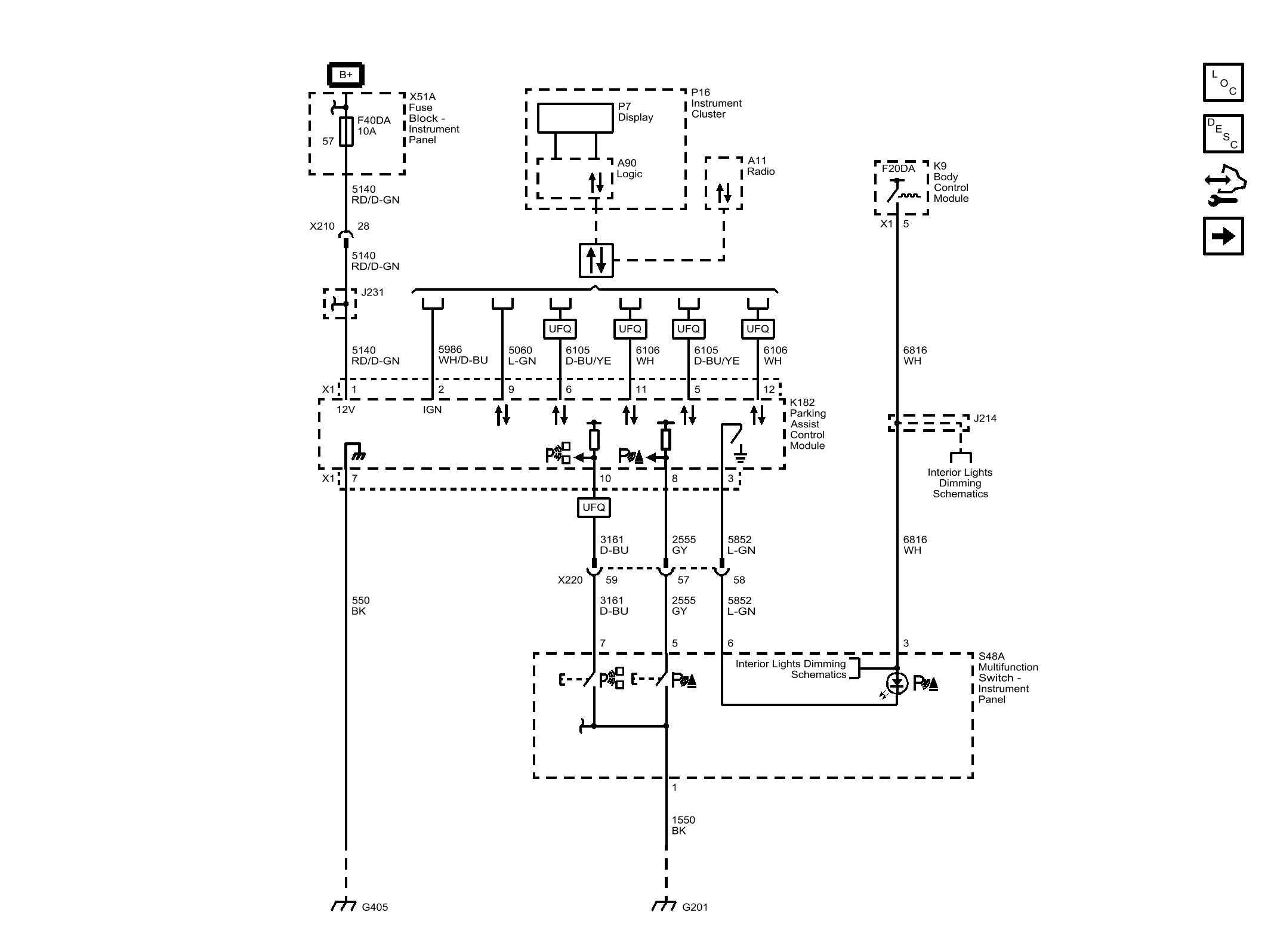

Fig 1: Park Assist - Power, Ground, Serial Data, and Control (UD7/UFQ)
GM4298502Courtesy of GENERAL MOTORS COMPANY
