Video Inputs

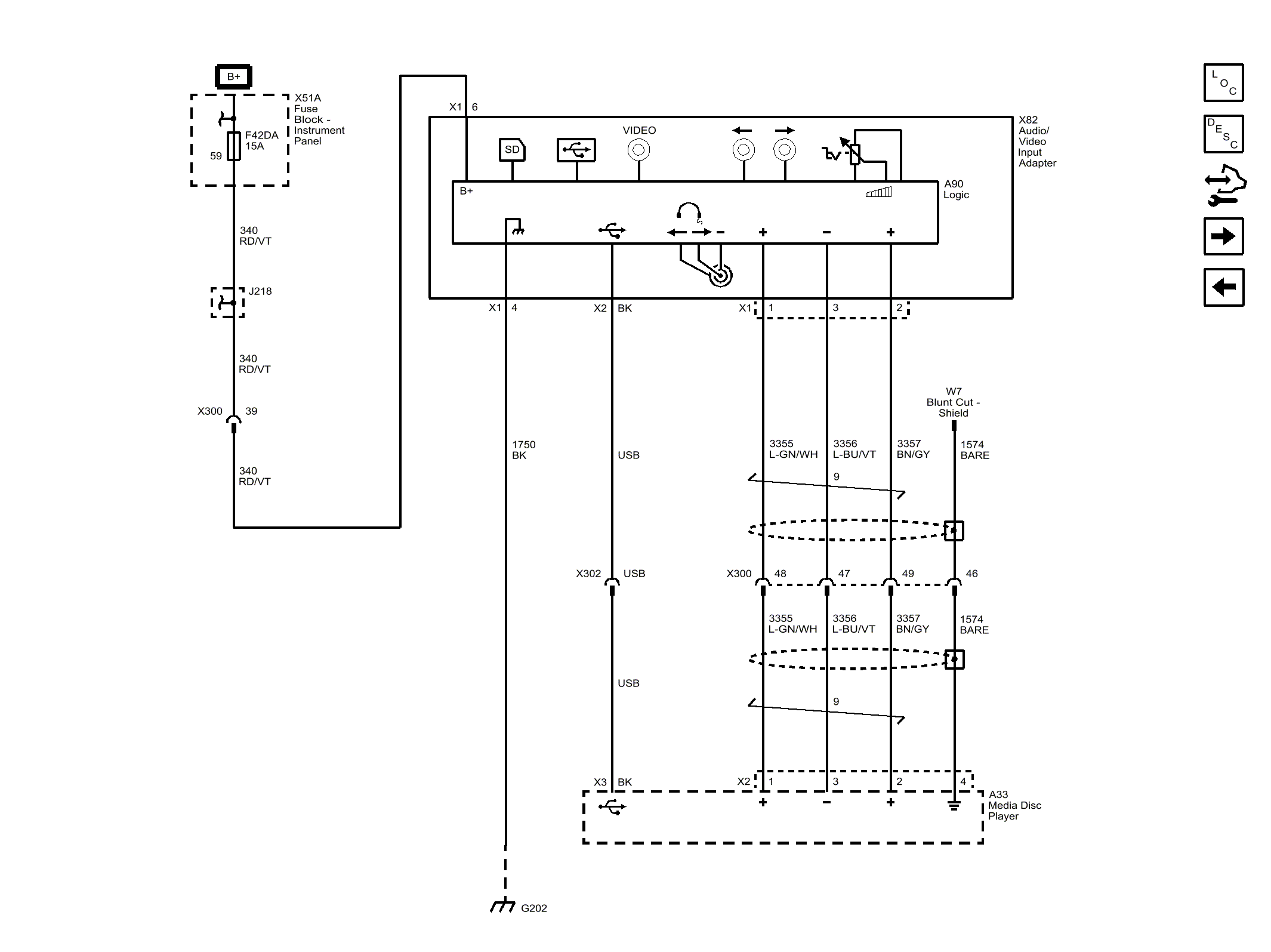

Fig 1: Video Inputs
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
