Infotainment Control Touchpad (KOT)

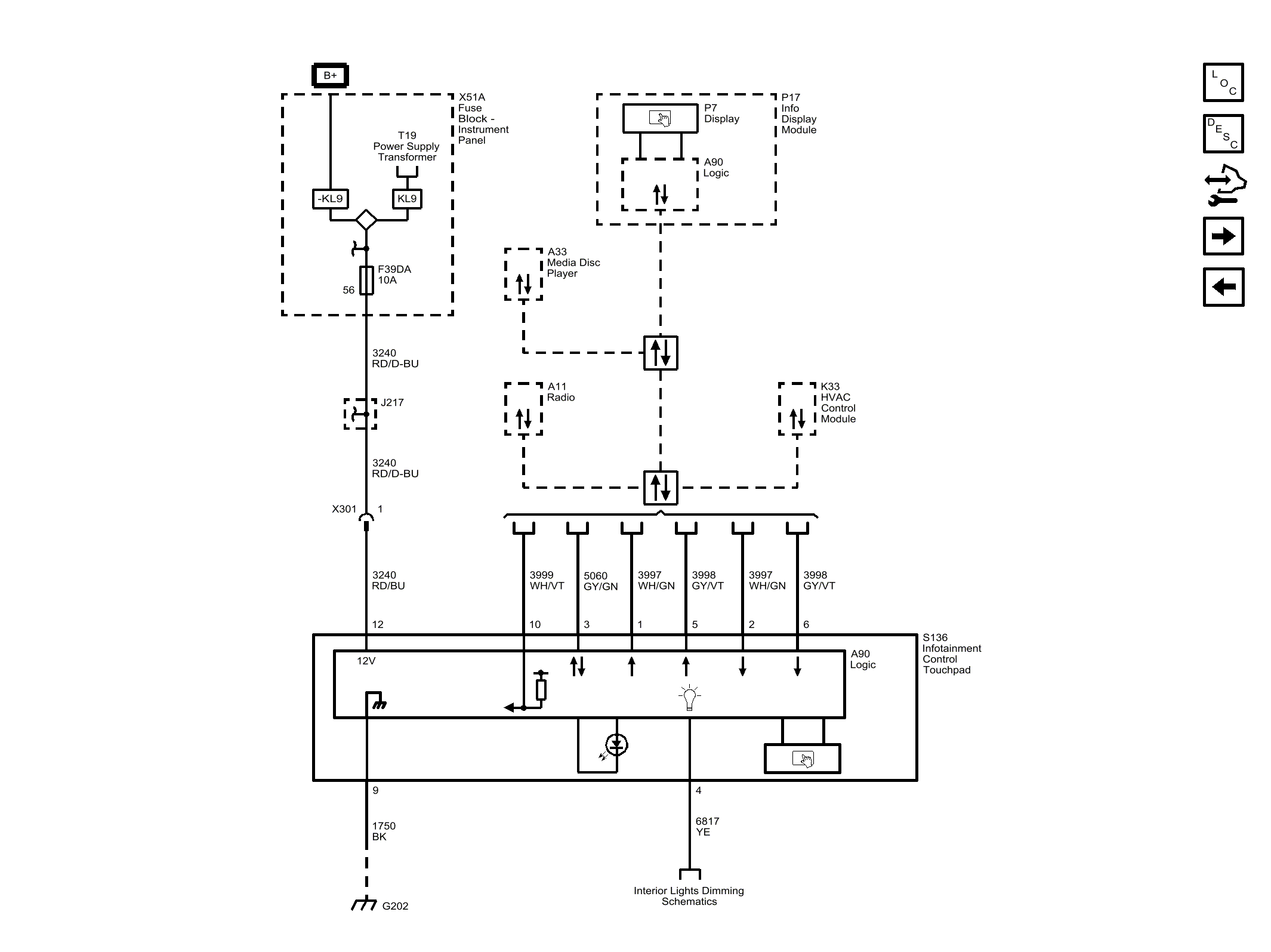

Fig 1: Infotainment Control Touchpad (KOT)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
